规格
| System | |
| Processor | Core i Series |
| System Chipset | Intel® QM67 Express Chipset |
| System Memory | 1 x 204-Pin DDR3 1333MHz SO-DIMM up to 8 GB |
| I / O Chip | Nuvoton NTC6776F |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec./1sec.step |
| H/ W Status Monitor | Monitoring CPU & System Temperature and Voltage |
SBC | EPI-QM67 |
| Expansion | 1 x Mini PCIe Support mSATA |
| Storage | 1 x CompactFlash Type I/II Socket 1 x 2.5" Drive Bay |

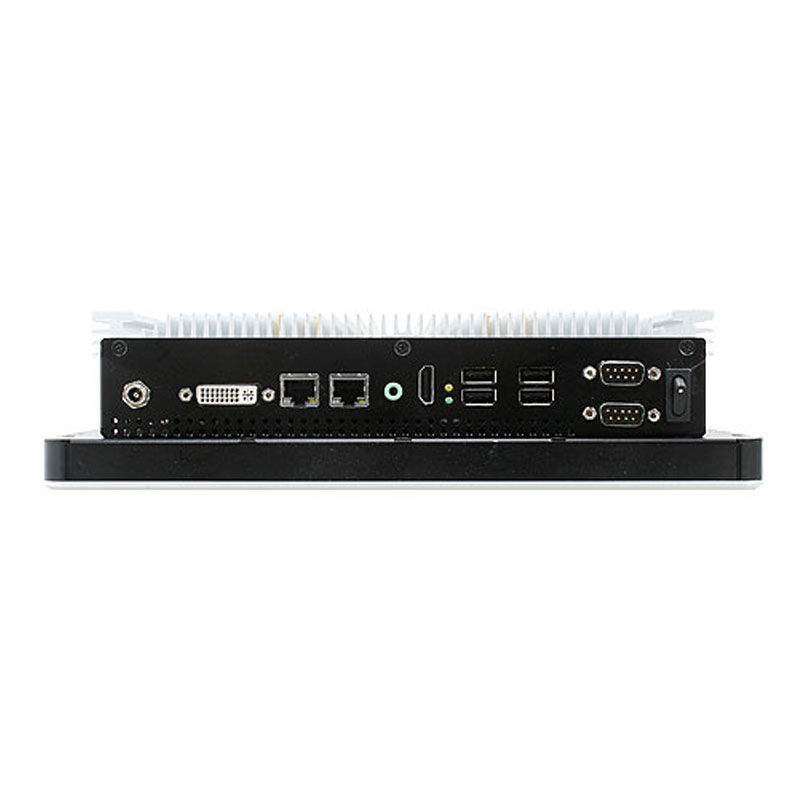

| I /O | |
| USB | 4 x USB 2.0 |
| SATA | 1 x SATA II |
| COM Port | 1 x RS-232 1 x RS-232/422/485 |
| Other | 1 x HDMI 1 x DVI |
| Display | |
| Chipset | Intel® QM67 Chipset Integrated Supports dual display |
| Resolution | DVI-D:Max. resolution 1920x1200@ 60Hz HDMI:Max. resolution 1920x1200@ 60Hz |
| Audio | |
| Chipset | Realtek ALC892 |
| Audio Interface | Line-Out |
| Speaker Output | 2 x 1W |
| Ethernet | |
| Chipset | 1 x Intel® 82574L 1 x Intel® 82579LM |
Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
| LAN Port | 2 x RJ-45 |
| Mechanical & Environmental | |
| Operating Temp | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temp | -20°C ~ 60°C (-4°F ~ 140°F) |
Operating Humidity | 0% ~ 90% Relative Humidity , Non -Condensing |
Weight | 3.9Kgs |
| Dimension ( L x W x H) | 283 x 222 x 68.8mm |
| Vibration Test | With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis |
Shock Test | With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms |
| System Fan | Fanless |
| Construction - Front | Silver Aluminum |
| Construction - Rear | Black |
| Certifications | |
| Certification Information | CE / FCC Class B |
| Software Support | |
| OS Information | Win 7(32 bit),Win 8(32 bit),Linux(64 bit) |
| Power Requirement | |
| Power Connector | Lockable DC Jack |
| Power Requirement | +12V ~ +19V |
| Power Mode | AT/ATX (ATX is default setting) |
| Adapter | Input: 100 ~ 240Vac/ 50 ~ 60Hz; Output 84W Adapter (12V @ 7A Adapter) |

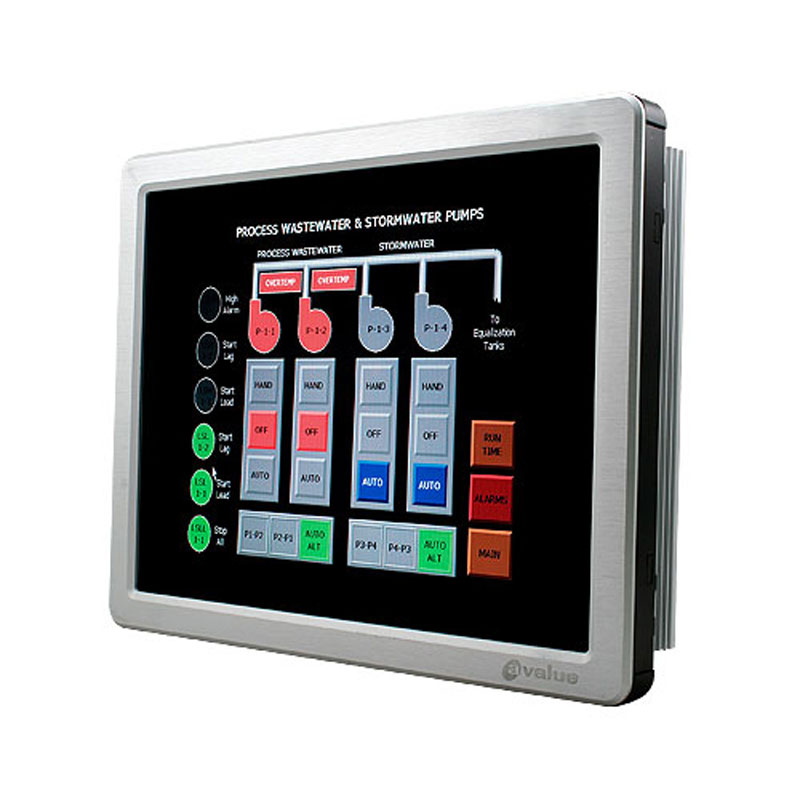

| Panel | |
| LCD Size | 12.1", 4:3 |
| Display Type | XGA |
| Resolution | 1024x768 |
| Pixel pitch | 0.240mm(H) x 0.240mm(V) |
| Luminance | 600 cd/m2 |
| Contrast ratio | 700 |
| Viewing angle | 70 (U), 70 (D), 80 (L), 80 (R) |
| Response time | 16 ms |
| Backlight | LED |
| Touch Type | 5 Wires resistive |
| Touch Light Transmission | 80% |
| Touch Controller | Onboard USB touch (PenMount) |
