规格
| System | |
| Processor | Intel® Celeron® J1900 4-Core 2.0GHz processor |
| System Chipset | Intel® Valleyview SoC |
| System Memory | 1 x 204-Pin DDR3L 1066/1333MHz SO-DIMM up to 8 GB |
| I / O Chip | EC ITE IT8528E |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec./1sec.step |
| H/ W Status Monitor | Monitoring CPU & System Temperature and Voltage |
SBC | EBM-BYT |
| Expansion | 1 x Mini PCIe 1 x Mini PCIe Supports mSATA |
| Storage | 1 x CompactFlash Type I/II Socket 1 x 2.5" Drive Bay |

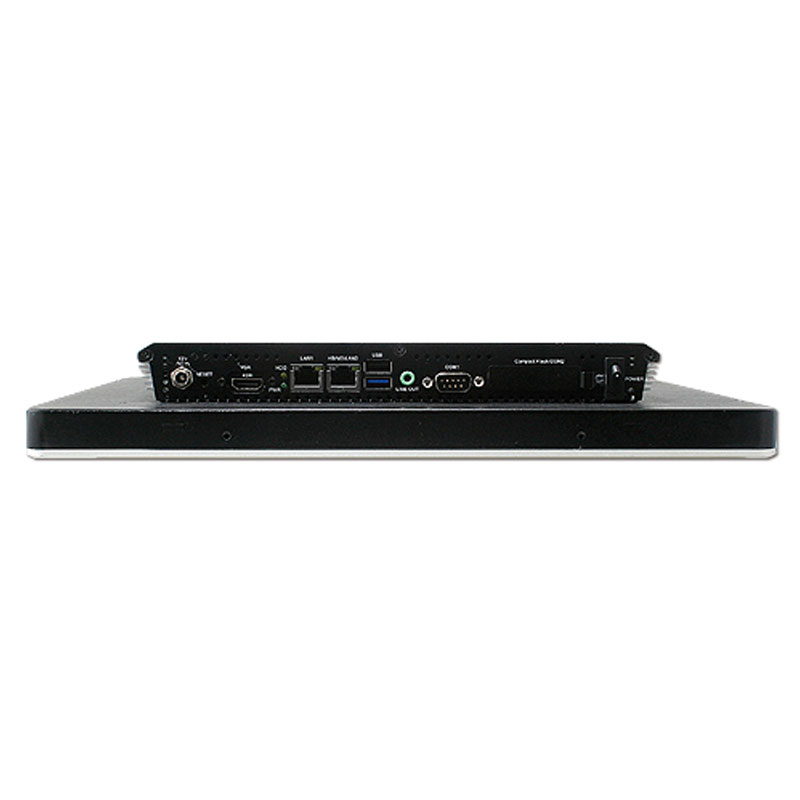

| I /O | |
| USB | 1 x USB 3.0 1 x USB 2.0 |
| COM Port | 1 x RS-232/422/485 |
| Display | |
| Chipset | Intel® Valleyview SoC integrated Graphics Supports dual display |
| Resolution | HDMI:Max. resolution 1920x1200@ 60Hz LVDS:Max. resolution 1920x1200@ 60Hz |
| Audio | |
| Chipset | Realtek ALC892 supports 5.1-CH |
| Audio Interface | Line-Out |
| Ethernet | |
| Chipset | 2 x Intel® I211AT |
Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
| LAN Port | 2 x RJ-45 |
| Mechanical & Environmental | |
| Operating Temp | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temp | -10°C ~ 50°C (14°F ~ 122°F) |
Operating Humidity | 0% ~ 90% Relative Humidity , Non -Condensing |
Weight | 4.2Kgs |
| Dimension ( L x W x H) | 350 x 274 x 53.5 mm |
| Vibration Test | With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis |
Shock Test | With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms |
| System Fan | Fanless |
| Construction - Front | Silver Aluminum |
| Construction - Rear | Black |
| Certifications | |
| Certification Information | CE / FCC Class B |
| Software Support | |
| OS Information | Win 7 Win 8 Linux |
| Power Requirement | |
| Power Connector | Lockable DC Jack |
| Power Requirement | +12V ~ +26V |
| Power Mode | AT/ATX |
| Adapter | Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter) |
| Panel | |
| LCD Size | 15", 4:3 |
| Resolution | 1024x768 |
| Pixel pitch | 0.297mm (H) x 0.297mm (V) |
| Luminance | 400 cd/m2 |
| Contrast ratio | 700 |
| Viewing angle | 60 (U), 80 (D), 80 (L), 80 ( R) |
| Response time | 8ms |
| Backlight | LED |
| Touch Type | Projective Capacitive |
| Touch Light Transmission | 88% |
| Touch Controller | USB touch (EETI) |
