规格
| System | |
| Processor | Intel® Pentium®/Celeron® processor |
| System Memory | 1 x 204-Pin DDR3L 1600MHz SO-DIMM up to 8 GB |
| I / O Chip | Nuvoton NPCE388N |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec./1sec.step |
| H/ W Status Monitor | Monitoring CPU & System Temperature and Voltage |
| Expansion | 1 x Mini PCIe Support mSATA 1 x Mini PCIe Supports SIM Card |
| Storage | 1 x 2.5" Drive Bay 1 x Onboard eMMC (32G reserved) |

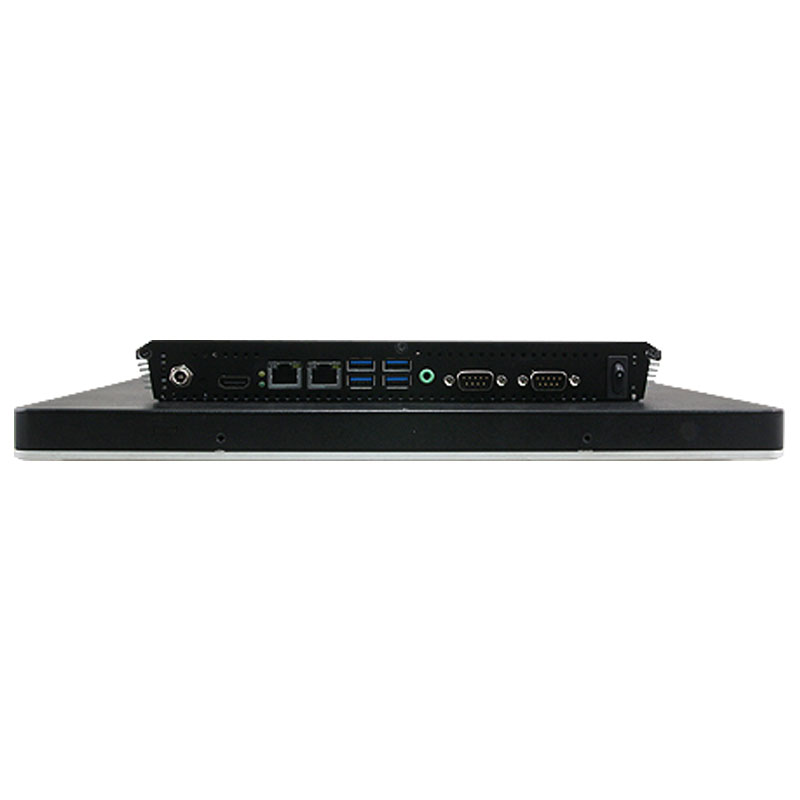

| I /O | |
| USB | 4 x USB 3.0 |
| SATA | 1 x SATA III |
| COM Port | 2 x RS-232/422/485 (Factory Optional) |
| Other | 1 x HDMI 1 x Knockouts for Antenna Mounting |
| Display | |
| Chipset | Intel® Braswell SoC integrated Graphics Supports dual display |
| Resolution | HDMI:Max. resolution 1920x1200 @ 60Hz |
| Audio | |
| Chipset | Realtek ALC233 supports 2.1-CH |
| Audio Interface | Line-Out |
| Speaker Output | 2 x 1W |
| Ethernet | |
| Chipset | 2 x Realtek RTL8119 |
Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
| LAN Port | 2 x RJ-45 |
| Mechanical & Environmental | |
| Operating Temp | -10°C ~ 50°C |
| Storage Temp | -20°C ~ 60°C |
Operating Humidity | 0% ~ 90% Relative Humidity , Non -Condensing |
Weight | 2.84 Kgs |
| Mounting Kit | Wall / Stand / VESA 75mm x 75mm |
| Dimension ( L x W x H) | 283 x 222 x 45 mm |
| Vibration Test | With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis |
Shock Test | With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms |
| System Fan | Fanless |
| Construction - Front | Silver Aluminum |
| Construction - Rear | Black |
| Certifications | |
| Certification Information | CE / FCC Class B |
| Software Support | |
| OS Information | Win 7(32 bit),Win 8(32 bit),Linux(64 bit) |
| Power Requirement | |
| Power Connector | Lockable DC Jack |
| Power Requirement | +12V ~ +26V |
| Power Mode | AT/ATX (ATX is default setting) |
| ACPI | Single Power ATX Support S0, S3, S4, S5 ACPI 3.0 Compliant |
| Adapter | Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter |
| Panel | |
| LCD Size | 15", 4:3 |
| Display Type | XGA |
| Resolution | 1024x768 |
| Pixel pitch | 0.297mm(H) x 0.297mm(V) |
| Luminance | 400 cd/m² |
| Contrast ratio | 700 |
| Viewing angle | 70 (U), 70 (D), 80 (L), 80 (R) |
| Response time | 16 ms |
| Backlight | LED |
| Touch Type | 5 Wires resistive |
| Touch Light Transmission | 80% |
| Touch Controller | Onboard USB touch (EETI) |
