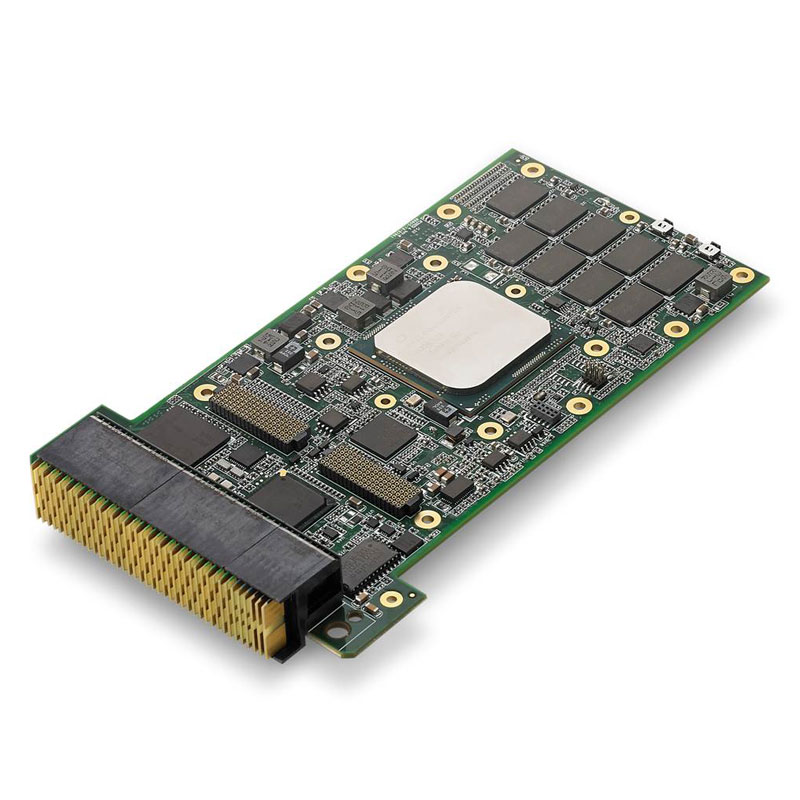

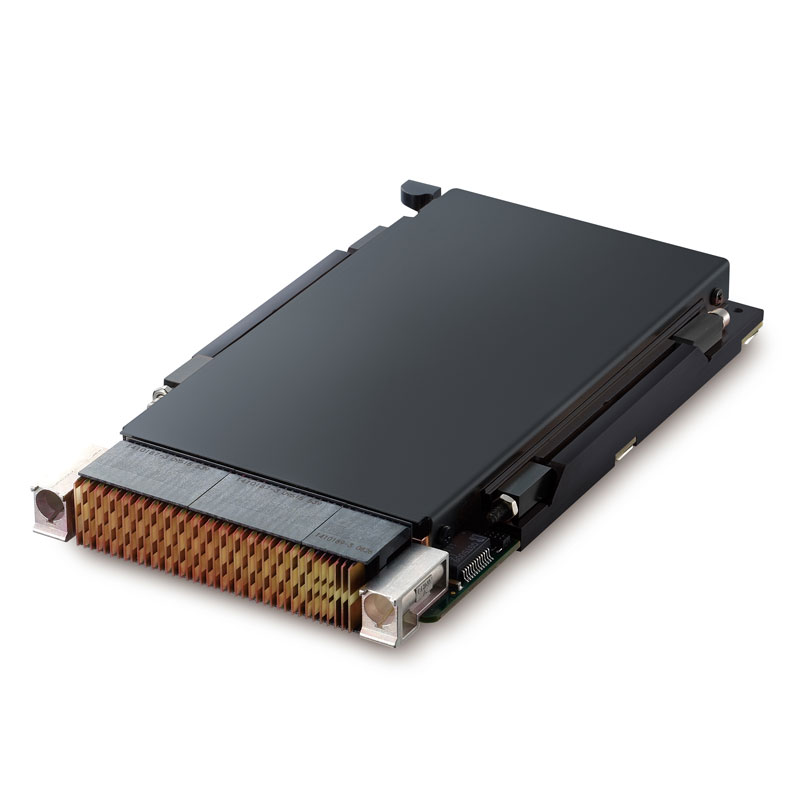

| Specifications | |||
| Processor & System | |||
| CPU | Intel® Xeon® D-1559 12-core, 45W TDP Intel® Xeon® D-1539 8-core, 35W TDP Intel® Pentium® D1519 4-core, 25W TDP | ||
| RAM | Dual channel DDR4-2133 ECC soldered SDRAM, up to 16GB | ||
| BIOS | AMI EFI on 64Mbit SPI flash | ||
VITA Standards | VITA 46.0 VPX Base Standard VITA 46.4 PCI Express on VPX Fabric Connector VITA 46.6 Gigabit Ethernet Control Plane on VPX VITA 46.9 PMC/XMC/Ethernet Signal Mapping to 3U/6U VPX VITA 46.10 Rear Transition Module on VPX VITA 46.11 System Management on VPX VITA 48.0 Ruggedized Enhanced Design Implementation Me chanical Base Specification VITA 65 OpenVPX Architecture Framework for VPX | ||
| Module Profile | MOD3-PAY-2F2T-16.2.5-3 | ||
| Slot Profile | SLT3-PAY-2F2T-14.2.5 | ||
Connectivity | |||
| XMC | PCIe x8 Gen3 with Rear IO to P2 X8d+X12d | ||
Ethernet | Dual 10G-KR to P2 Two 1000BASE-T to P1 (or one 1000BASE-T and two 1000BA SE-BX by BOM option) | ||
| Graphics | SMI750 on PCIe x1 One VGA to P2 | ||
| USB | One USB 3.0 to P1 and one to P2 One USB 2.0 to P1 | ||
| Serial Port | One RS-232 to P1 One RS-232/422 to P1 | ||
| PCI Express | PCIe x8 Gen3, configurable to 1 x8 or 2 x4 to P1, supp orts DMA and non-transparent bridge for peer-to-peer communication PCIe x8 Gen3 to P2 (combined with PCIe x8 Gen3 to P1 f or PCIe x16 Gen3, no XMC BOM option) PCIe x1 Gen3 to P1 (no XMC BOM option) | ||
| Storage | |||
| SBC | Soldered SLC NAND flash up to 64GB SATA 6Gb/s | ||
| RTM | One SATA 6Gb/s to P1 One SATA 6Gb/s to P2 (no XMC BOM option) | ||
| Operating System | |||
| OS | Red Hat Enterprise Linux 6.5 Wind River VxWorks 7.0 Microsoft Windows 7 32/64-bit | ||
