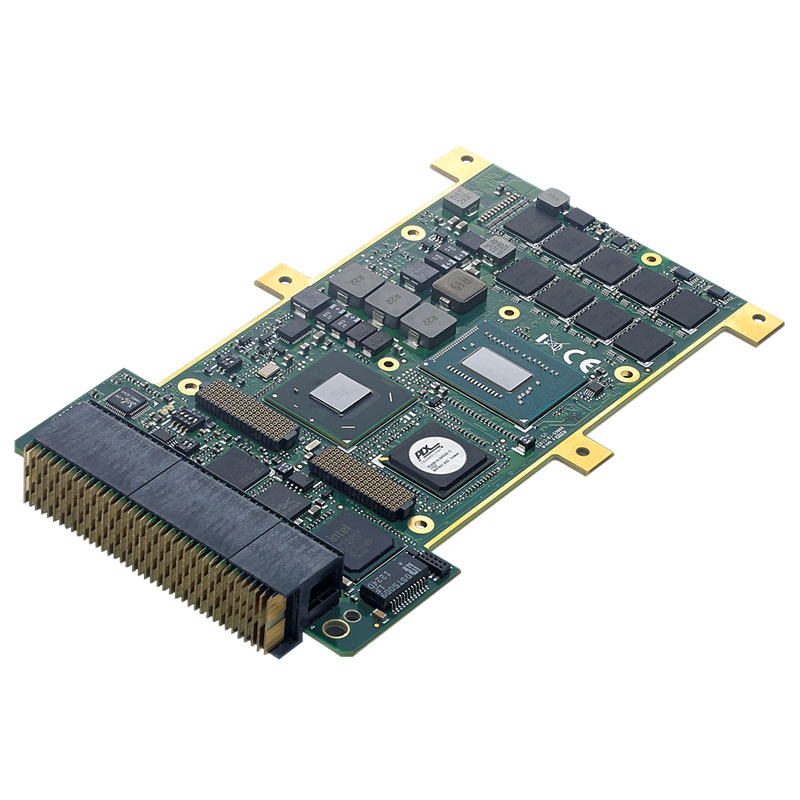

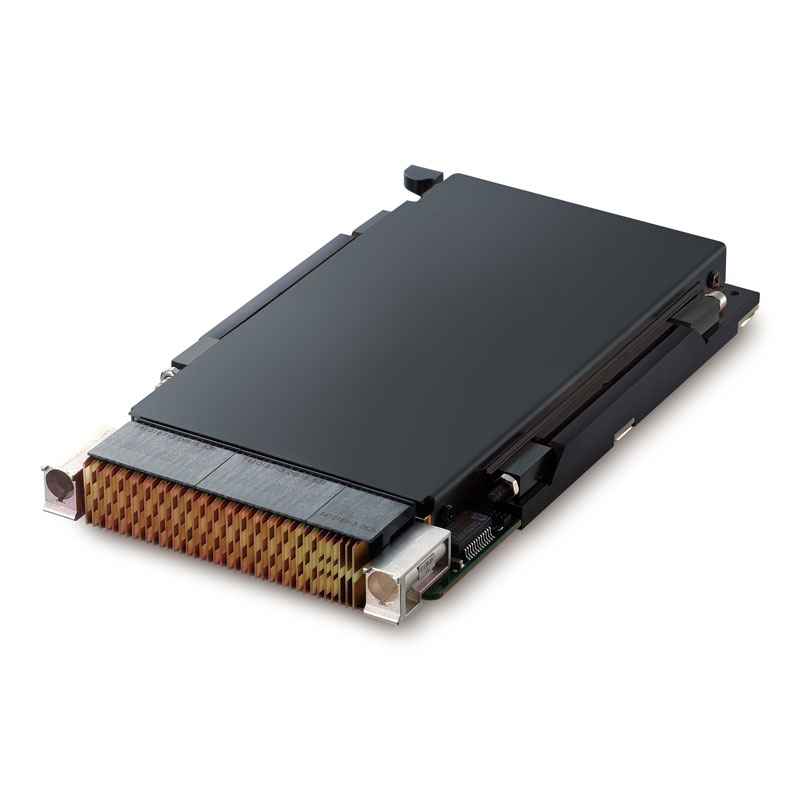

| Specifications | |||
| Processor & System | |||
| CPU | Quad-core Intel® Core™-i7-3612QE 2.1GHz, 6MB LLC cach e, TDP=35w | ||
| Chipset | Mobile Intel® QM77 Express Chipset | ||
| Memory | Dual channel DDR3-1333 ECC soldered SDRAM, up to 8GB | ||
| BIOS | AMI EFI on 64Mbit SPI flash | ||
VITA Standards | VITA 46.0 VPX Base Standard VITA 46.4 PCI Express on VPX Fabric Connector VITA 46.6 Gigabit Ethernet Control Plane on VPX VITA 46.9 PMC/XMC/Ethernet Signal Mapping to 3U/6U VPX VITA 46.10 Rear transition module on VPX VITA 46.11(draft) System Management on VPX VITA 48.0 Ruggedized Enhanced Design Implementation Me chanical Base Specification VITA 65 OpenVPX Architecture Framework for VPX | ||
| Module Profile | MOD3-PAY-2F2U-16.2.3-3 MOD3-PAY-1F1F2U-16.2.4-4 | ||
| Slot Profile | SLT3-PAY-2F2U-14.2.3 SLT3-PAY-1F1F2U-14.2.4 | ||
Connectivity | |||
| XMC | PCIe x8 Gen2 with RIO to P2-X8d+X12d | ||
Ethernet | Two 1000BASE-BX to P1 One 10/100/1000BASE-T to P1 | ||
| Graphics | Single channel DVI+RGB to P2 | ||
| USB | One USB 3.0 and one USB 2.0 to P1 | ||
| Serial Port | One RS-232 (RTS#,CTS#, SIN, SOUT) and one RS-422 to P2 | ||
| Audio | Intel® HDA Line-in, Line-out to P2 | ||
| PCI Express | 2x PCIe x4 Gen2 to P1, configurable to 1x8 or 1x4+4x1 Supports DMA and Non Transparent Bridge for peer to pe er communication | ||
| Storage | |||
| SBC | Soldered 32GB SATA 3Gb/s boot flash Two SATA 6Gb/s ports to P1 and one SATA 3Gb/s port to P2 | ||
| Operating System | |||
| OS | Red Hat Enterprise Linux 6.2 Wind River VxWorks 6.9 Microsoft Windows 7 32/64bit Microsoft Windows 7 Embedded | ||
