| Specifications | |||

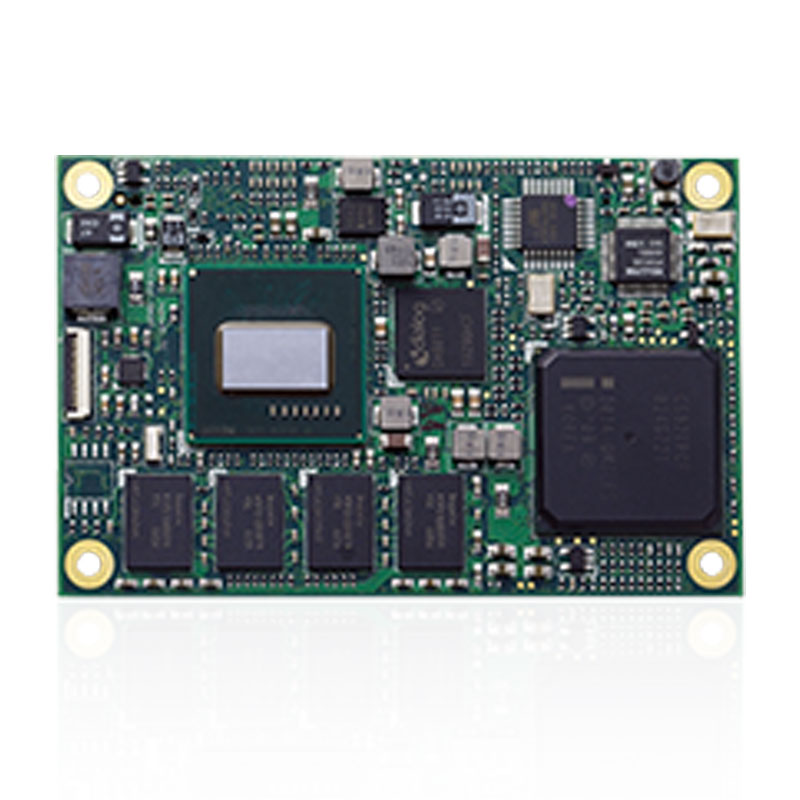

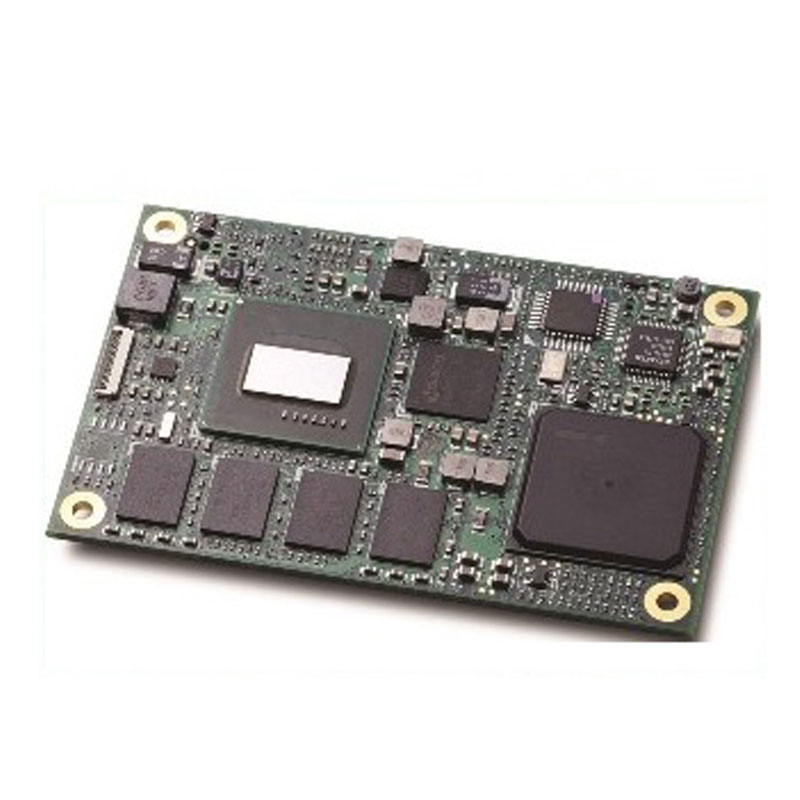

| Model Name | nanoX-TC | ||
| Core System | |||
CPU | Intel® Atom™ E680, 1.6 GHz, 3.9 W TDP Intel® Atom™ E660, 1.3 GHz, 3.3W TDP Intel® Atom™ E640, 1.0 GHz, 3.3W TDP Intel® Atom™ E620, 600 MHz, 2.7W TDP All processors support Intel® Hyper-Threading and Intel® Virtualization Technology | ||
| L2 cache | 512 KB on all processors | ||
| Memory | Soldered 512 MB, 1 or 2 GB DDR2 at 800 MHz | ||
BIOS | License-free bootloader or AMI UEFI flash | ||
| Hardware Monitor | Supply voltages and CPU temperature | ||
| Debug Interface | XDP SFF-26 extension for ICE debug Embedded Features Instant on with Intel Bootloader support, OEM BIOS settings, Board Info & Statistics, ACPI 3.0, Smart Battery Management support, Watchdog with programmable timer ranges | ||
| Expansion Busses | 4 PCI Express x1 (0/1/2/3, port 3 is used for EG20T PCH build option; no PCIe x4 support) LPC Bus, SMBus (system) , I2C (user) 4 GPI and 4 GPO (shared with SDIO on optional EG20T) SPI (supports BIOS only) | ||
| Video | |||
| 2D/3D Graphic Engine | Integrated in Intel® Atom™ Processor E6xx | ||
| Decoding | MPEG2, MPEG4, VC1, WMV9, H.264 and DivX | ||
| Encoding | MPEG4, H.264 (baseline at L3) | ||
| LVDS Interface | Single channel 18- or 24-bit pixel color depths with maximum resolution of up to 1280x768 @ 60 Hz. Pixel clock rate between 19.75 MHz (minimum) and 80 MHz (maximum) | ||
| SDVO | Serial digital video output supporting devices for DVI, TV-out, analog VGA.Maximum resolution of up to 1280x1024 @ 85 Hz and pixel clock rate up to 160 MHz. | ||
| Audio | |||
High Definition Audio | Integrated in Intel® Atom™ Processor E6xx | ||
| Characteristics | Multi-channel audio stream, 32-bit sample depth, sample rate up to 192kHz | ||
| Audio Codec | On carrier (standard support for ALC886) | ||
| Ethernet | |||
Serial and CAN | One RS-232 (RX/TX) and one CAN (AX/RX) port(optional 2x RS-232 w/o CAN) | ||
| GbE MAC | Integrated in Intel® EG20T PCH | ||
| PHY | Realtek RTL8211CL | ||
| Speed | 10/100/1000 Mbps | ||
| I/O | |||
| Chipset | Integrated in Intel® PCH EG20T | ||
| USB | Six USB 2.0 host ports and one USB 2.0 client port | ||
| SATA | Two ports supporting SATA 1.5 Gb/s and 3 Gb/s | ||
| SDIO Port | SDIO/MMC supporting SDHC speed class 6 (shared with GPIO,selectable in the BIOS setup) | ||
| Power | |||
| Input Power | 4.75 V – 21 V wide range, supports AT mode and ATX mode(with additional 5 Vsb) | ||
| Power States | Supports S0, S1, S3, S4, S5 | ||
| Power Consumption | 5W at 5V typical, 3W idle | ||
| Smart Battery Support | Yes | ||
| Mechanical and Environmental | |||
| Specification | PICMG COM.0: Rev 2.1 Type 10 | ||
| Form Factor | Mini size: 84 mm x 55 mm | ||
| Operating Temperature | Standard: 0°C to +60°C Storage Temperature: -20°C to +80°C | ||
| Humidity | 90% at +60°C | ||
| Shock | 15G peak-to-peak, 11ms duration, non-operation | ||
| Vibration | Non-operating: 1.88 Grms, 5-500 Hz, each axis Operating: 0.5 Grms, 5-500 Hz, each axis Certification: CE, FCC, HALT | ||
| Operating Systems | |||
| Standard Support | Windows XP/Windows 7, Linux | ||
| Extended Support (BSP) | Embedded XP, WinCE 6.0, Linux, VxWorks 6.x,QNX, AIDI Library | ||
