规格
| System | |
| Processor | Intel ® Atom™ Processor Z3735F |
| System Memory | 2GB DDR3L RAM |
| Storage | 32GB eMMC |
| I /O | |
| USB | 3 x USB2. 0 1 x McroUSB Client (Andriod) |
| Other | 2 x Stero Phone Jack 1 x DigitalMic Option RFID/ SCR module Option Wifi module Option Multimedia Handset |
| Audio | |
| Chipset | Realtek ALC5645 |
| Audio Interface | Mic-in and Line-out |
| Speaker Output | 2 x 3W Speaker |
| Ethernet | |
Chipset Ethernet Interface | Microchip LAN9512 10/100MB Ethernet 10/ 100 Base-T x GbE compatible |
| LAN Port | 1 x RJ45 |
| Mechanical & Environmental | |
| Power Type | ATX |
| Operating Temp | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temp | -10°C ~ 60°C (14°F ~ 140°F) |
Operating Humidity Weight | 0% ~ 90% Relative Humidity , Non -Condensing 3. 75kgs |

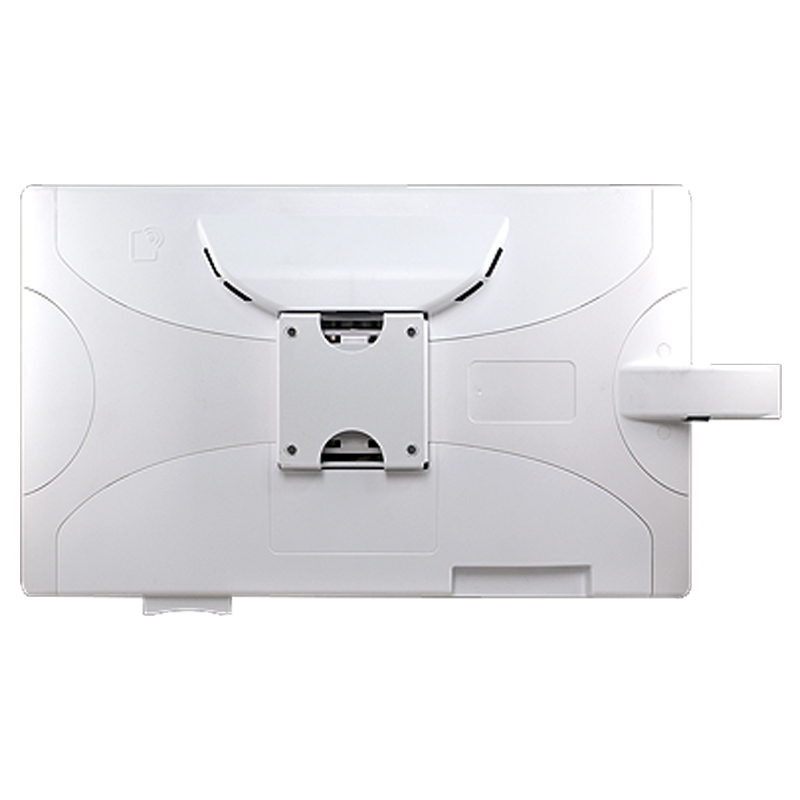

| Mounting Kit | VESA 75 mm x 75mm |
| Vibration Test | With SSD/mSATA:1. 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz , 30min/axis |
| Shock Test | With CF/ SSD: 10Grms, IEC 60068-2-27, Half Sine, 11ms |
| System Fan | Fanless |
| Construction - Front | White Plastic |
| Construction - Rear | White Plastic |
| Finishing | Anti -microbial |
| Dimension | 463. 95 x 289. 95 x 68. 83 mm |
| Certifications | |
| Certification Information | CE CLASS A FCC Part 15, CLASS A UL/ IEC/ EN60601-1 |
| Software Support | |
| OS Information | Windows 8. 1 Windows 10 Android 4. 4 Ubuntu 14. 04 |
| Power Requirement | |
| Power Connector Power Requirement | DC Jack 12V ~ 24V Input |
| Adapter | Input : 100~ 240 Vac/ 50~ 60Hz ; Output 90W Adapter (19V/ 4. 73A) |
| Panel | |
| LCD Size | 18.5 |
| Display Type | HD |
| Resolution | 1366x 768 |
| Pixel pitch | 0. 3(H) x 0. 3(V) mm |
| Luminance | 300 cd/m2 |
| Contrast ratio | 700~ 1000 |
| Viewing angle | Horizontal 150 ~170; Vertical 140 ~160 |
| Response time | TR 2. 5 -2. 5ms; TF 3. 5-5. 5ms |
| Backlight | LED |
| Touch Type | Projective Capacitive |
| Touch Light Transmission | 88% +/ 13% |
| Touch Controller | Control Board EETI |
