| Specifications | |||
| Processor & System | |||
| GPU | NVIDIA GeForce GT 745M NVIDIA CUDA Technology(compute capability 3.0), 384 co res NVIDIA Optimus Technology NVIDIA PhysX Technology NVIDIA PureVideo Technology H.264 video encoding High-Bandwith Digital Content Protection (HDCP) suppor t GPU Boost 2.0 OpenGL 4.4 OpenCL 1.2 Microsoft DirectX 11.1 | ||
| Memory | Dual channel GDDR5 SDRAM with ECC, 2GB 128bit memory interface | ||
| Display | Digital display support up to 1920 x 1200 Max. Analog display support up to 2048 x 1536 | ||
| VITA Standards | VITA 46.0 VPX Base Standard VITA 46.4 PCI Express on VPX Fabric Connector VITA 48.0 Ruggedized Enhanced Design Implementation Mechanical Base Specification: VITA 65 OpenVPX Archite cture Framework for VPX | ||
Module Profile | SLT3-PER-2F-14.3.1 | ||

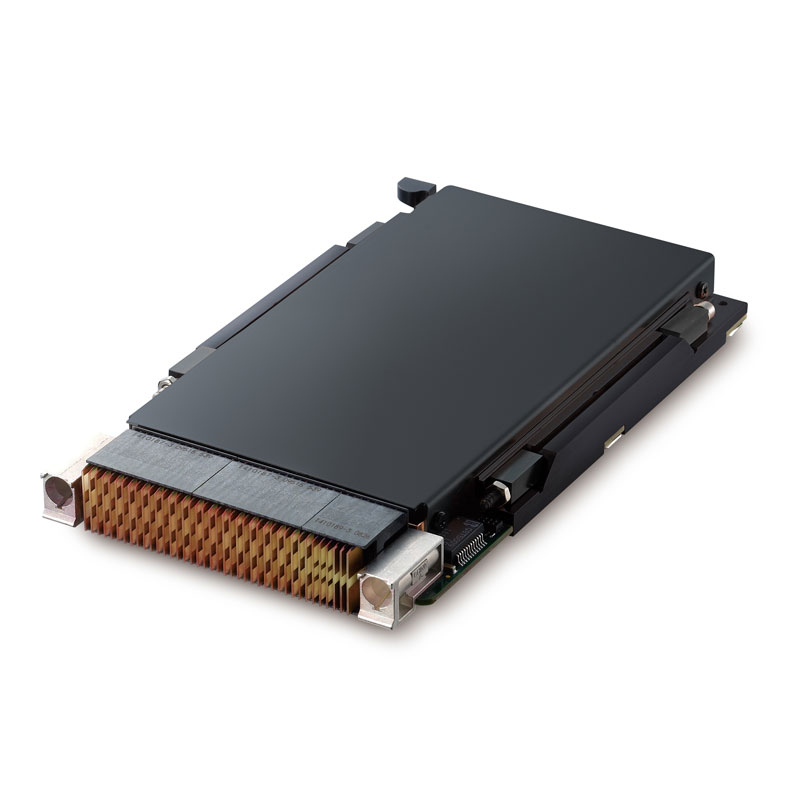

| Slot Profile | Four single-link DVI-D and one VGA on P16 (conduction cooled version only) | ||
Connectivity PCI Express | 1x PCIe x16 Gen3 (x8/x4/x1) to P1 | ||

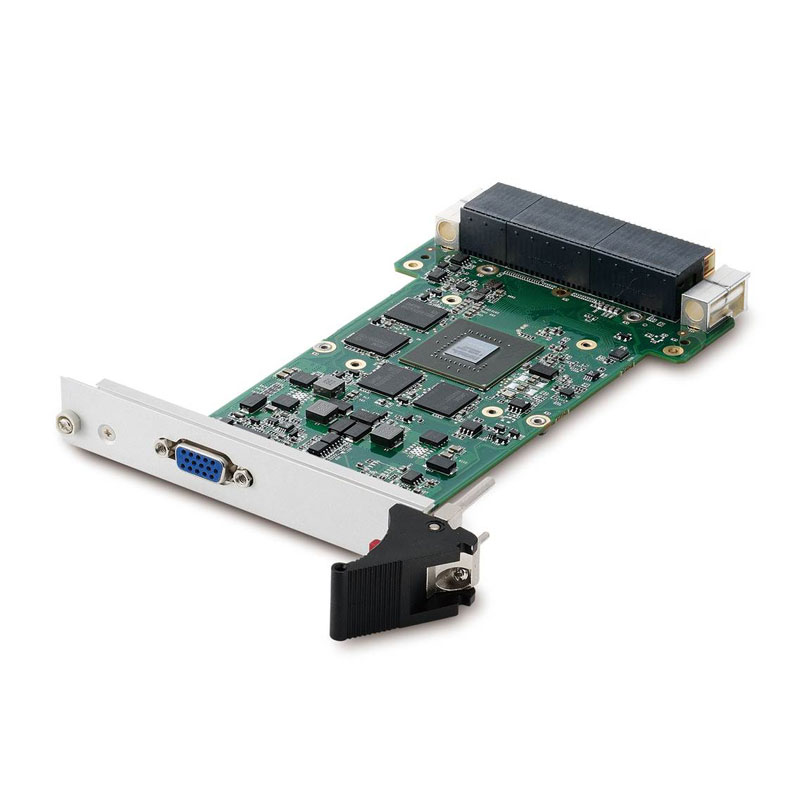

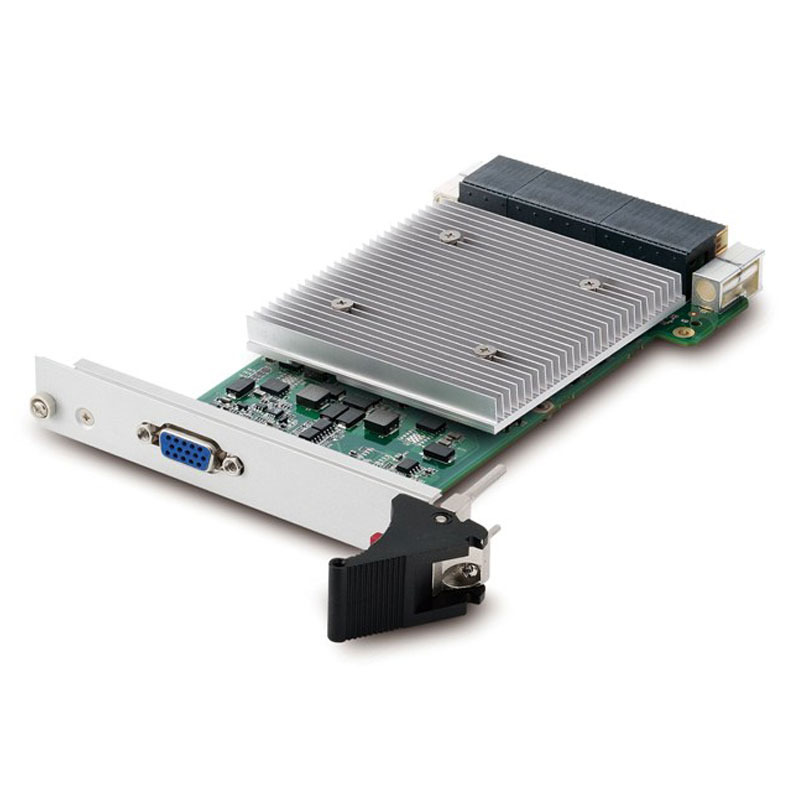

Graphics | One VGA port on front panel (air cooled version) Four single-link DVI and one VGA to P2 (conduction coo led version) | ||
Operating System OS | Microsoft Windows 7 Microsoft Windows 8 Red Hat Enterprise Linux | ||
| Miscellaneous | LED: Power good | ||
| Mechanical & Environmental | Form Factor: 3U VPX 0.8”100mm x 160mm (LxW) | ||
| Operating Temperature | -40°C to +85°C (at wedge-lock) Storage Temperature: -50°C to +100°C | ||
| RH Humidity | 95% non-condensing | ||
| Shock | Sawtooth 40G, 11ms, each axis, operating (conduction c ooled version) 20g peak, 11ms (air cooled version) | ||
| Vibration | 15Hz-2KHz, 12Grms, random, each axis, operating (condu ction cooled version) Random: 0.002g2/Hz from 10 to 2000Hz; Sine: 2G, 5 to 5 00Hz (air cooled version) Power: +5V | ||
Safety & EMI Certifications | CE/ FCC Class A | ||
