| Specifications | |||
| Processor & System | |||
| GPU | NVIDIA GeForce GT 745M NVIDIA CUDA Technology (compute capability 3.0), 384 c ores NVIDIA H.264 video encoding NVIDIA PureVideo hardware decoding High-Bandwith Digital Content Protection (HDCP) suppor t Supports OpenGL 4.4, OpenCL 1.2, DirectX 11.1 | ||
| Memory | Dual channel GDDR5 SDRAM with ECC, 2GB128-bit memory i nterface | ||
| Display | cBP-6418U：8槽64位6U cPCI CT总线背板 | ||
| VITA Specifications | VITA 42.0 XMC: Switched Mezzanine Card Base Specificat ion VITA 42.3 XMC: XMC PCI Express Protocol Layer VITA 46.9 VPX: PMC/XMC Rear I/O Fabric Signal Mapping on 3U and 6U VPX Modules | ||
Connectivity XMC Site | PCIe x8 Gen3 on P15 | ||
| XMC I/O | Four single-link DVI-D and one VGA on P16 (conduction cooled version only) | ||

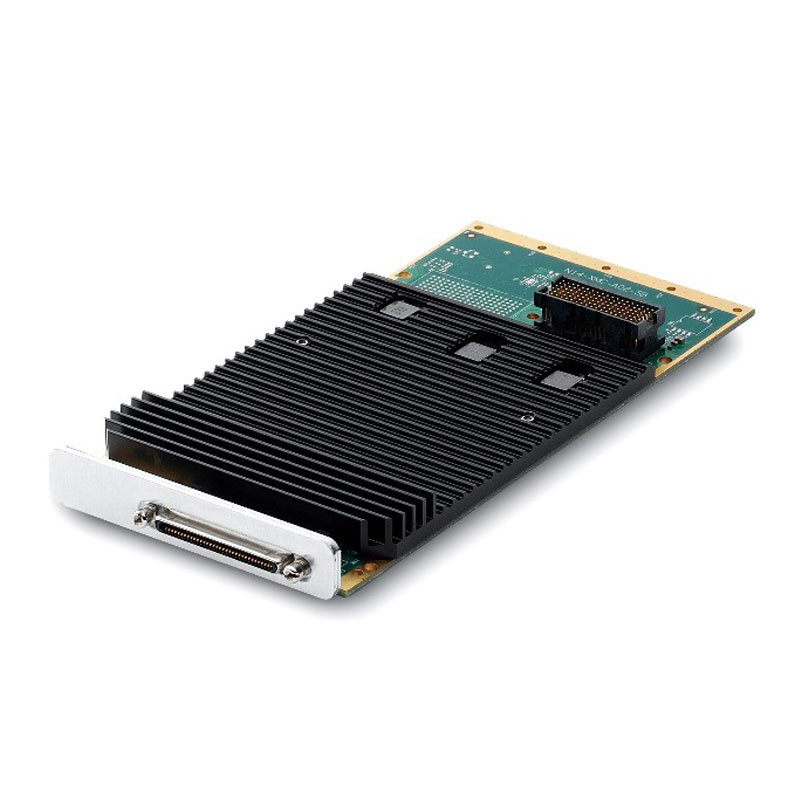

| Front Panel | Four single-link DVI to front panel extra space via VH DCI connector (air cooled version only) | ||
Operating System OS | Microsoft Windows 7 Microsoft Windows 8.1 Red Hat Enterprise Linux | ||

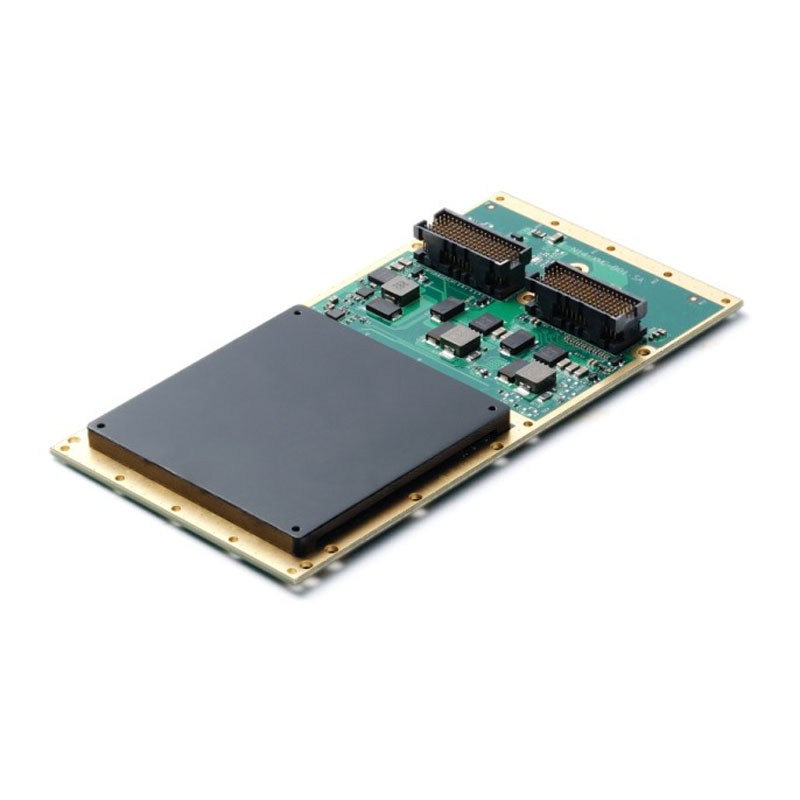

Mechanical & Environmental Form Factor | Standard XMC Form Factor 143.75 x 74mm (conduction cooled version) 149 x 74mm (air cooled version) | ||
| Operating Temperature | -40°C to +85°C (conduction cooled version, with GPU throttling) 0°C to +55°C (air cooled version) | ||
| Rel. Humidity | 95% non-condensing | ||
| Shock | Sawtooth 40G, 11ms, each axis, operating (conduction c ooled version) 20g peak, 11ms (air cooled version) | ||
| Vibration | 15Hz-2KHz, 12Grms, random, each axis, operating (condu ction cooled version) | ||
| Random | 0.002g2/Hz from 10 to 2000Hz; Sine: 2G, 5 to 500Hz (ai r cooled version) | ||
| Power | Power input 5V, 3.3V | ||
Safety & EMI Certifications | CE/ FCC Class A | ||
