| Specifications | |

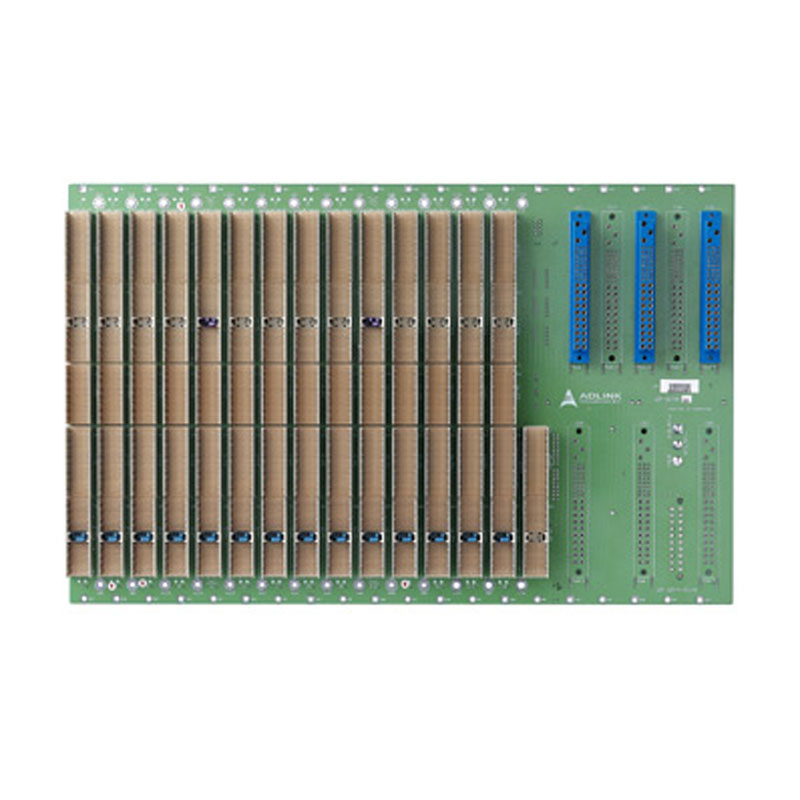

| Model Name | cBP-6614A |
| PICMG® | 2.0 R3.0, 2.1 R2.0, 2.9 R1.0, 2.11 R1.0, 2.16 R1.0 |
| Dimensions | 420.6 x 262.05 (mm, W x H) |
| 2.16 Node Slot | 12 |
| 2.16 Fabric Slot | Two |
| cPCI Bus | None |
| System Slot | All node slots act as stand-alone system slots |
| System Slot Rear I/O | P3, P4, and P5 rear I/O with AB-type shroud |
| Peripheral Slot | None |
| CMM Slot | One |
| Power Socket | 3 for 6U 8HP redundant power module |
| H.110 Bus | None |
| V (I/O) | 3.3 V or 5 V selectable, default 5 V |
| Power Connectors | AC/DC input, One ATX connector, DC screw terminals |
| Other Connectors | INH#, FAL#, DEG#, Voltage LEDs, Reset, PICMG® 2.9 I PMB |
Chassis or Sub-systems | cPCIS-3300BLS series |
