Product
Focus on technical applications such as motion control data acquisition and br equipment IoT
| Specifications | |

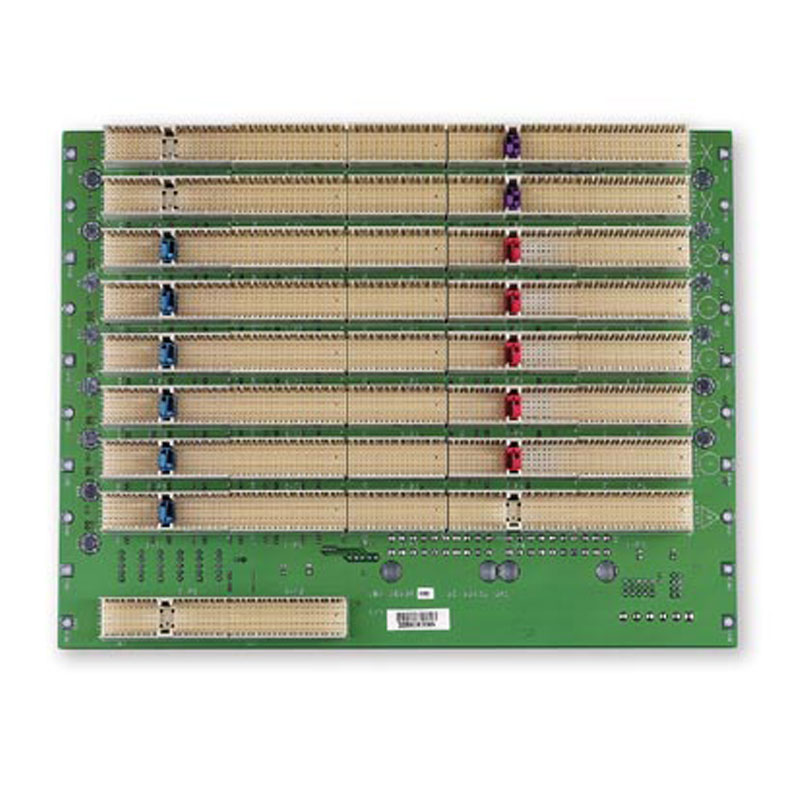

| Model Name | cBP-6609A |
| PICMG® | 2.0 R3.0, 2.1 R2.0, 2.5 R1.0, 2.16, 2.9 R1.0 |
| Dimensions | 225 x 262.05 (mm, W x H) |
| Segment | One |
| cPCI Bus | Up to 64-bit/66 MHz |
| System Slot | Right-hand side |
| System Slot Rear I/O | P3, P4, & P5 |
| Peripheral Slot | Five |
| Peripheral Slot Rear I/O | P4 & P5 |
| H.110 Bus | Comply with PICMG 2.5 for all peripheral slots (P4) |
| V (I/O) | 3.3 V or 5 V selectable, factor default is 5 V |
| Power Connectors | Two ATX, DC screw terminals |
Chassis or Sub-systems | cPSB-880 |
