| Specifications | |

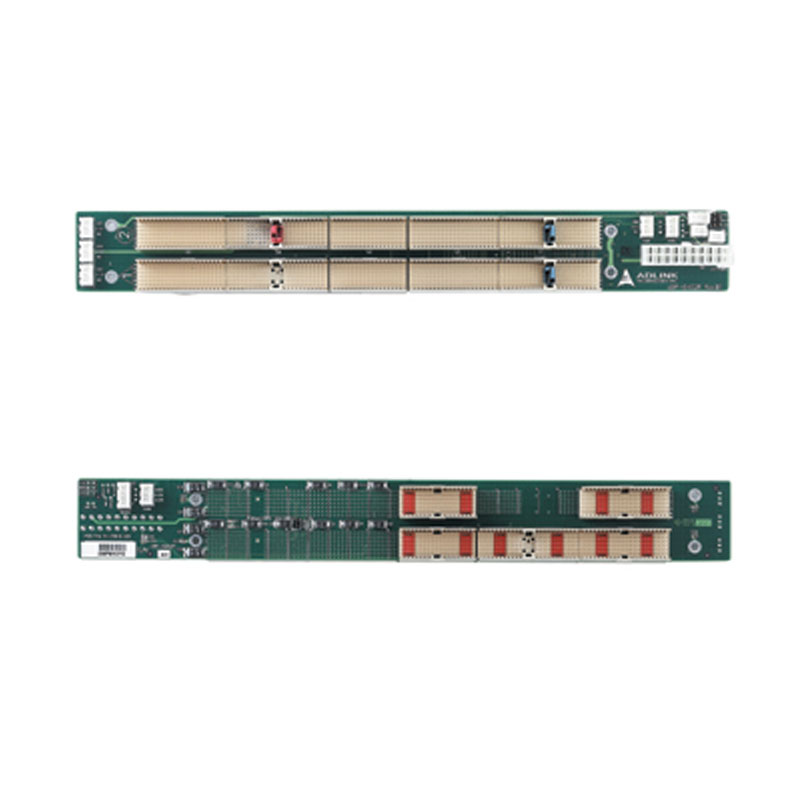

| Model Name | cBP-6402R |
| PICMG® | 2.0 R3.0, 2.1 R2.0 |
| Dimensions | 309.6 x 39.64 (mm, W x H) |
| Segment | one |
| cPCI Bus | Up to 64-bit/66 MHz |
| System Slot | Left-hand side (soldered side) |
| System Slot Rear I/O | No rear I/O |
| Peripheral Slot | Seven |
| Peripheral Slot Rear I/O | No rear I/O |
| V (I/O) | 3.3 V or 5 V selectable, default 5 V |
| Power Input | ATX connector |
| System Slot Legacy I/O | KB, MS, COM1, FDD, IDE1, Speaker |
| Other Connectors | Five Fans, PS_ON, Reset, PWR_LED |
Chassis or Sub-systems | cPCIS-6125 |
