| Specifications | |||

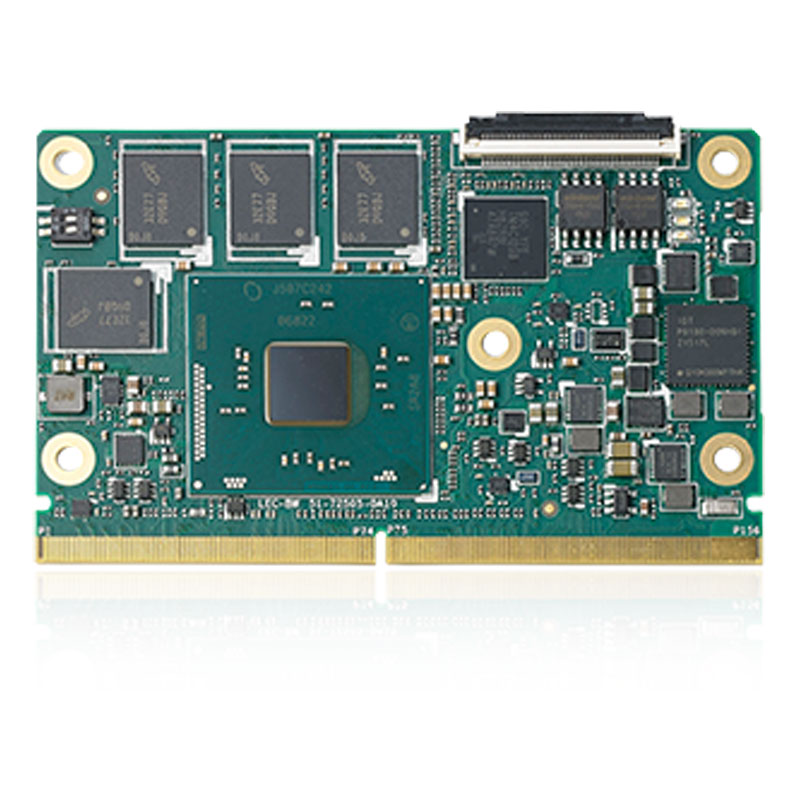

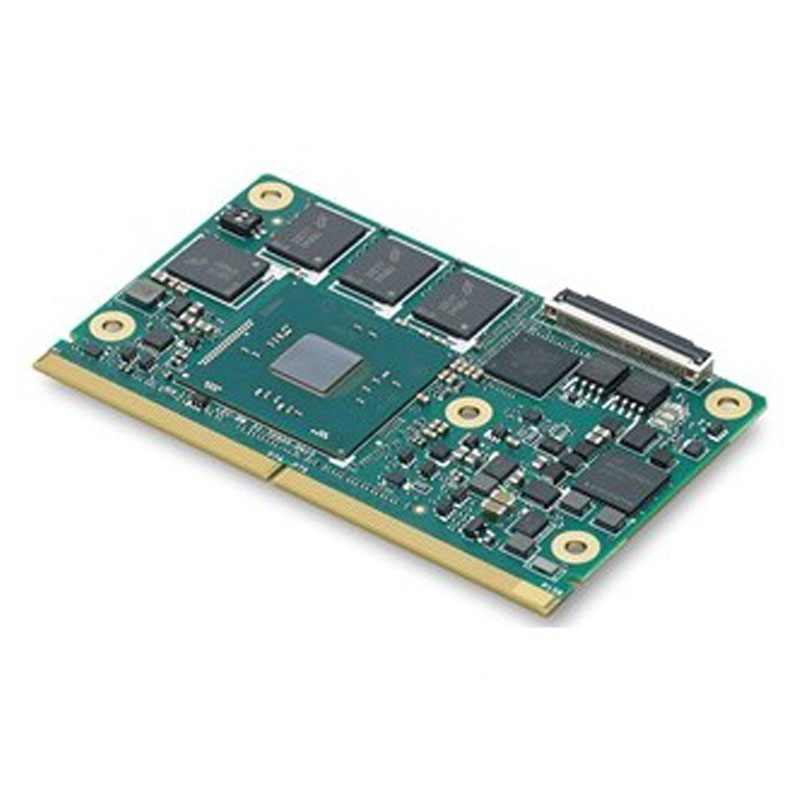

| Model Name | LEC-BW | ||
| Core System | |||
CPU | Intel® Pentium™ N3710, 4 cores, 1.6GHz, 6W TDP Intel® Celeron™ N3160, 4 cores, 1.6GHz, 6W TDP Intel® Celeron™ N3060, 2 cores, 1.6GHz, 6W TDP Intel® Celeron™ N3010, 2 cores, 1.0GHz, 4W TDP Intel® Atom™ x5-E8000, 4 cores, 1.0GHz, 5W TDP | ||
| Memory | Up to 8 GB DDR3L at 1333/1600 MT/s single channel, 64bit | ||
Embedded BIOS | AMI UEFI with CMOS backup in 8 MB SPI BIOS, Fast Boot support | ||
| Cache | 512 kB to 2 MB L2 cache | ||
| SEMA Board Controller | Supports: Voltage/Current monitoring, Power Sequencing, Logistics and Forensic Information, Flat Panel Control, I²C Bus Control, GPIO Control, User Flash, Failsafe BIOS (dual BIOS), Watchdog Timer and Fan Control | ||
| Video | |||
| GPU Feature Support | 8th generation Intel® graphics core architecture with sixteen execution units, supports three independent displays 4K video (up to 3840 x 2160 @ 30fps), 2D and 3D graphics hardware acceleration Support for DirectX 12/11.2, OpenGL 4.2/3.3, OpenCL 1.2 Video decode HW acceleration for H.265, H.264, MPEG2, MVC, VC-1, WMV9, JPEG, VP8 Video encode HW acceleration for H.264, MVC, JPEG | ||
| LVDS | Single channel 18/24-bit LVDS | ||
| HDMI | HDMI (3840 x 2160 @ 30Hz) | ||
| Custom option | 3rd display HDMI/DP, 2nd LVDS channel | ||
| Audio | |||
Chipset | Intel® HD Audio integrated in SOC | ||
| Ports | I²S and HDA for audio codec on carrier | ||
| Ethernet | |||
Intel® MAC/PHY | 1x Intel® i210IT Ethernet controller | ||
| Interface | 10/100/1000 GbE | ||
| I/O Interfaces | |||
| PCIe | 3x PCIe x1 Gen2 | ||
| USB | 1x USB 3.0 host, 2x USB 2.0 host, 1x USB 2.0 client | ||
| SATA | 2x SATA3 6 Gbit/s | ||
| Flash storage | 1x SDIO (4bit), 1x eMMC (8bit) | ||
| GPIO | 12x GPIO | ||
| Camera | 2x MIPI CSI 4L/2L | ||
| Serial | 2x SPI, 4x I²C, 2x UART, 1x SMBus, 1x LPC, 1x DB40 | ||
| Power | |||
| Standard Input | 3.0 V ~ 5.25 V DC ±5% | ||
| Power States | Supports C0-C6, S0, S3, S4, S5 | ||
| Mechanical and Environmental | |||
| Form Factor | SMARC Specifications v1.1 | ||
| Dimension | SMARC short size module, 82 mm x 50 mm | ||
| Operating Temperature | Standard: 0°C to +60°C | ||
| Humidity | 5-90% RH operating, non-condensing 5-95% RH storage (and operating with conformal coating) | ||
| Shock and Vibration | IEC 60068-2-64 and IEC-60068-2-27, MIL-STD-202 F, Method 213B, Table 213-I, Condition A and Method 214A, Table 214-I, Condition D | ||
| HALT | Thermal Stress, Vibration Stress, Thermal Shock and Combined Test | ||
| Operating Systems | |||
| Standard Support | Windows 7/8.1/10, Linux, Android | ||
| On Request | QNX, Android | ||
