| Specifications | |||

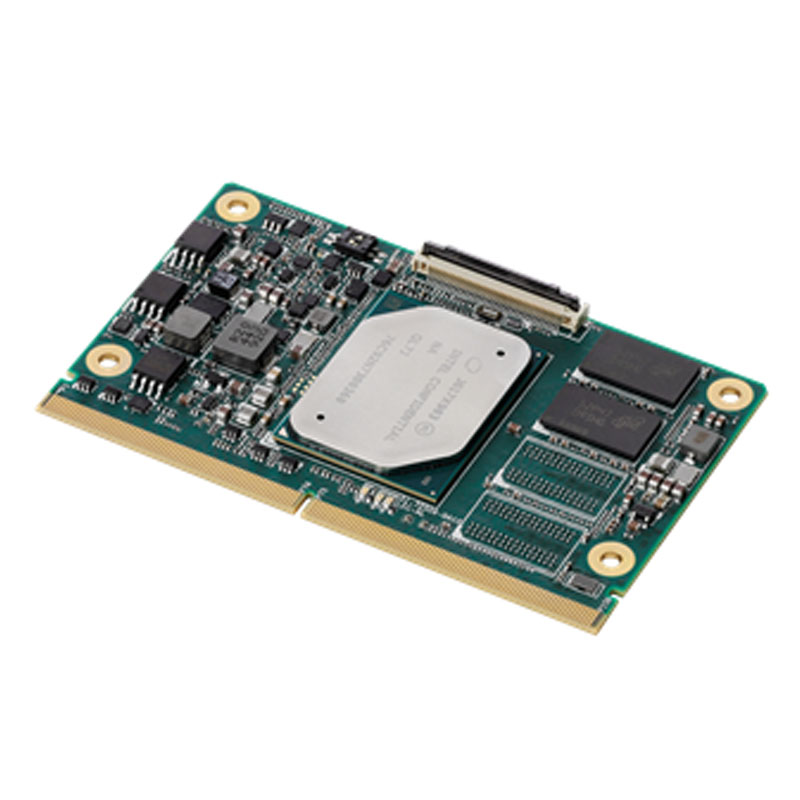

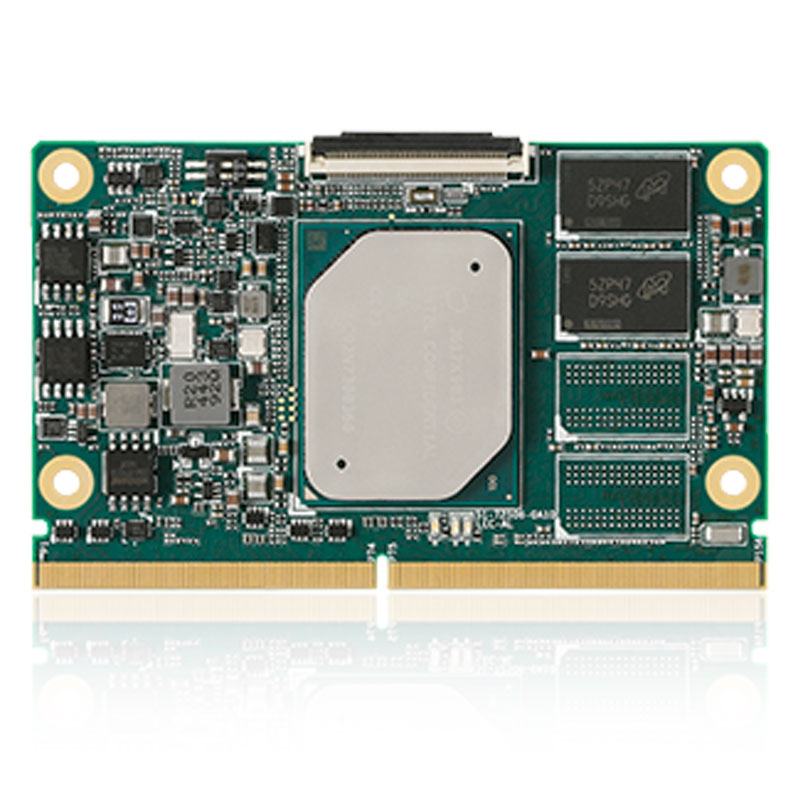

| Model Name | nanoX-AL | ||
| Core System | |||
CPU | Intel® Atom E3950, 4 cores, 2.0 GHz, 12 W TDP Intel® Atom E3940, 4 cores, 1.8 GHz, 9.5 W TDP Intel® Atom E3930, 2 cores, 1.8 GHz, 6.5 W TDP Intel® Pentium N4200, 4 cores, 2.5 GHz, 6W TDP Intel® Celeron N3350, 2 cores, 2.4 GHz, 6W TDP | ||
| Memory | Up to 8 GB DDR3L at 1867 MT/s Single/dual memory channel, 1-2 64bit, non-ECC | ||
Embedded BIOS | AMI UEFI with CMOS backup in 8 MB SPI BIOS, Fast Boot support | ||
| Cache | 2 MB L2 cache | ||
| SEMA Board Controller | Supports: Voltage/Current monitoring, Power Sequencing, Logistics and Forensic Information, Flat Panel Control, I²C Bus Control, GPIO Control, User Flash, Failsafe BIOS (dual BIOS), Watchdog Timer and Fan Control | ||
| Video | |||
| GPU Feature Support | 9th generation Intel® graphics core architecture with up to 18 execution units,supports three independent displays 2D and 3D graphics hardware acceleration Support for DirectX 12, OpenGL 4.2, OpenCL 1.2 Video decode HW acceleration for H.265/HEVC, H.264, MPEG2, MVC, VC-1,WMV9,JPEG/MJPEG, VP8, VP9 Video encode HW acceleration for H.265/HEVC, H.264, MPEG2, MVC, JPEG/MJPEG, VP8,VP9 (resolution depends on operating system) | ||
| LVDS | Dual channel LVDS (18/24-bit) | ||
| HDMI/DP++ | HDMI up to 3840 x 2160 @ 30Hz | ||
| DP++ | DP++ up to 4096 x 2160 @ 60Hz | ||
| Audio | |||
Chipset | Intel® HD Audio integrated in SoC | ||
| Ports | 1x I²S and 1x HDA for audio codec on carrier | ||
| Ethernet | |||
Intel® MAC/PHY | 1x Intel® i210IT Ethernet controller | ||
| Interface | 1x 10/100/1000 GbE, IEEE 1588 trigger signals | ||
| I/O Interfaces | |||
| PCIe | 4x PCIe x1 Gen2 | ||
| USB 2.0 | 1x USB 2.0 OTG, 5x USB 2.0 host | ||
| USB 3.0 | 1x USB 3.0 OTG, 1x USB 3.0 host | ||
| SATA | 1x SATA 3.0 (6 Gbit/s) | ||
| SDIO | 1x SDIO 3.0 (4bit) | ||
| Camera | 2x MIPI CSI camera (2L/4L) | ||
| Serial | 1x SPI, 1x eSPI, 4x I²C, 4x UART, 1x SMBus, 1x LPC, 1x DB40 | ||
| eMMC | Onboard eMMC 5.0 (4-16 GByte) | ||
| GPIO | 12x GPIO (interrupt capable) | ||
| Mechanical and Environmental | |||
| Form Factor | SMARC Specifications v2.0 | ||
| Dimension | SMARC short size module, 82 mm x 50 mm | ||
| Operating Temperature | Standard: 0°C to +60°C ; Extreme Rugged: -40ºC to +85ºC | ||
| Humidity | 5-90% RH operating, non-condensing 5-95% RH storage (and operating with conformal coating) | ||
| Shock and Vibration | IEC 60068-2-64 and IEC-60068-2-27, MIL-STD-202 F, Method 213B, Table 213-I, Condition A and Method 214A, Table 214-I, Condition D | ||
| HALT | Thermal Stress, Vibration Stress, Thermal Shock and Combined Test | ||
| Power | |||
| Standard Input | 3.0 V~5.25 V DC ±5% | ||
| Power States | C0-C6, S0, S3, S4, S5 | ||
| Operating Systems | |||
| Standard Support | Windows 10 IOT Enterprise, Windows 10 IOT Core, Yocto Linux | ||
| On Request | VxWorks, Android | ||
