| Specifications | ||
| Model Name | MXE-1301 | MXE-1302 |
| System Core | ||
| Processor | D2550 1.86GHz | N2600 1.6GHz |
| Chipset | Intel® NM10 | |
| Video | DVI + VGA dual display up to 1920 x 1200 | |
| Memory | Up to 4GB DDR3 800/1066 | Up to 2 GB DDR3 800 |
| I/O Interface | ||
| Ethernet | 3x GbE ports (3x Intel® 82574L) | |
| Serial Ports | 2x software-programmable RS-232/422/485 (COM1 & COM2) 2x RS-232 (COM3 & COM4) | |
| USB | 6x USB 2.0 ports | |
| Audio | 1x mic-in and 1x line-out | |
| Expansion | 1x mini PCIe slot | |
| DI/O | 4DI + 4DO | |
| Power Supply | ||
| DC Input | Built-in 6-36 V DC wide-range DC input , 3P pluggable connector with latch (V-, GND, V+) | |
| AC Input | Optional 80 W external AC-DC adapter for AC input | |
| Storage | ||

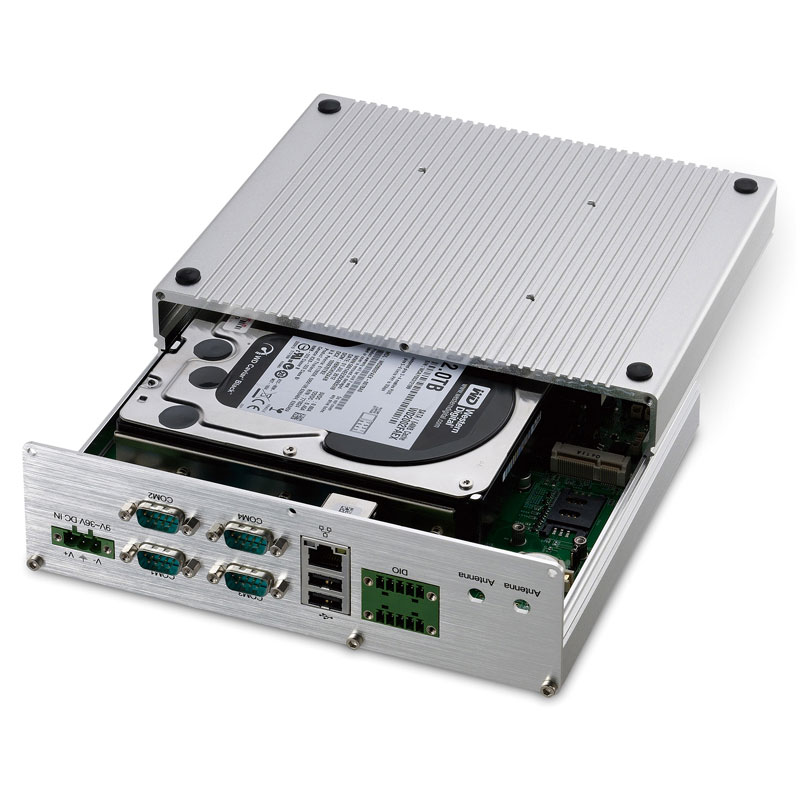

| SATA HDD | 1 x onboard SATA port for 2.5" HDD/SSD installation | |
| CF | 1x external type I CompactFlash socket | |
| Mechanical | ||
| Dimensions | 210 (W) x 170 (D) x 53(H) mm (8.3 x 6.75 x 2.1 in.) | |
| Weight | 1.8 kg (3.98 lb) | |
| Mounting | VESA 100 | |
| Environmental | ||
Operating Temperature | Standard: 0°C to 50°C (32 to 122°F) (w/ HDD) Extended: -20°C to 70°C (-14 to 140°F) (w/o HDD or w/industrial SSD/CF) | |
Storage Temperature | -40°C to 85°C (-40 to 185°F) | |
| Humidity | approx. 95% @ 40°C (non-condensing) | |
| Vibration | Operating, 5 G, 5-500 Hz, 3 axes (w/ CF or SSD) Operating, 0.5 G, 5-500 Hz, 3 axes (w/ HDD) | |
| EMC | CE, FCC | |
| Shock | Operating, 50 G, half sine 11ms duration (w/ CF or） | |

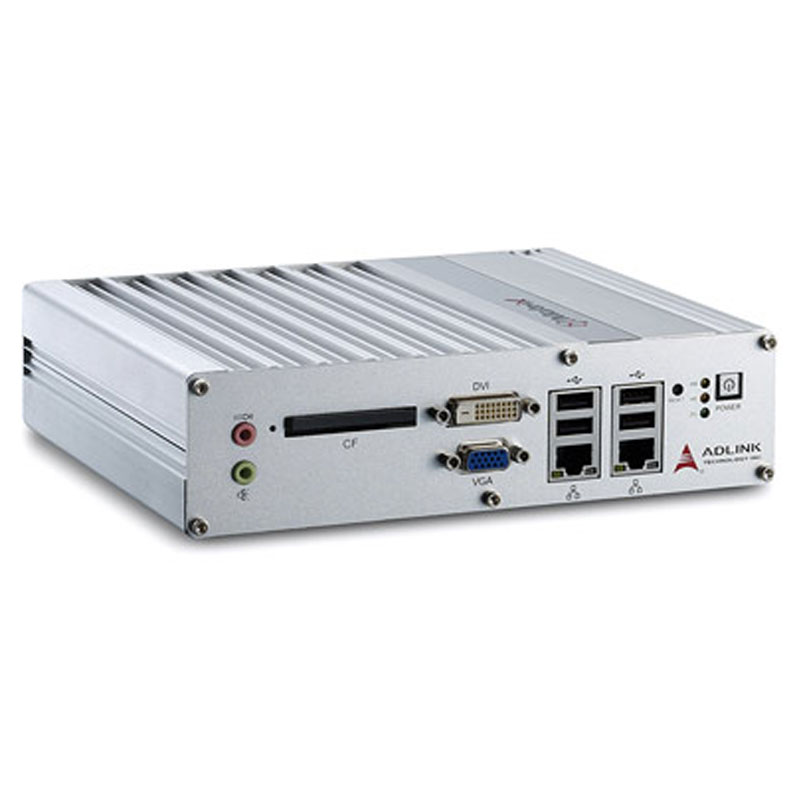

The Matrix MXE-1300 series is the latest addition to DaFeng’s Matrix line of embedded computers. Based on the Intel® Atom™
D2550/N2600 processor, the MXE-1300 provides excellent computingperformance while conserving considerable power.
The three Intel® Gigabit Ethernet ports provide abundant support for a variety of internet/ intranet applications, and four digital inputsand outputs deliver superior flexibility for inter-device communication.An internal PCI Express Mini Card socket and the USIM slot support extension of additional functions, such as wireless connection(3G/WiFi/BT/GPS), video capture, Secure Access Modules(SAM), and others.
