| Specifications | |||

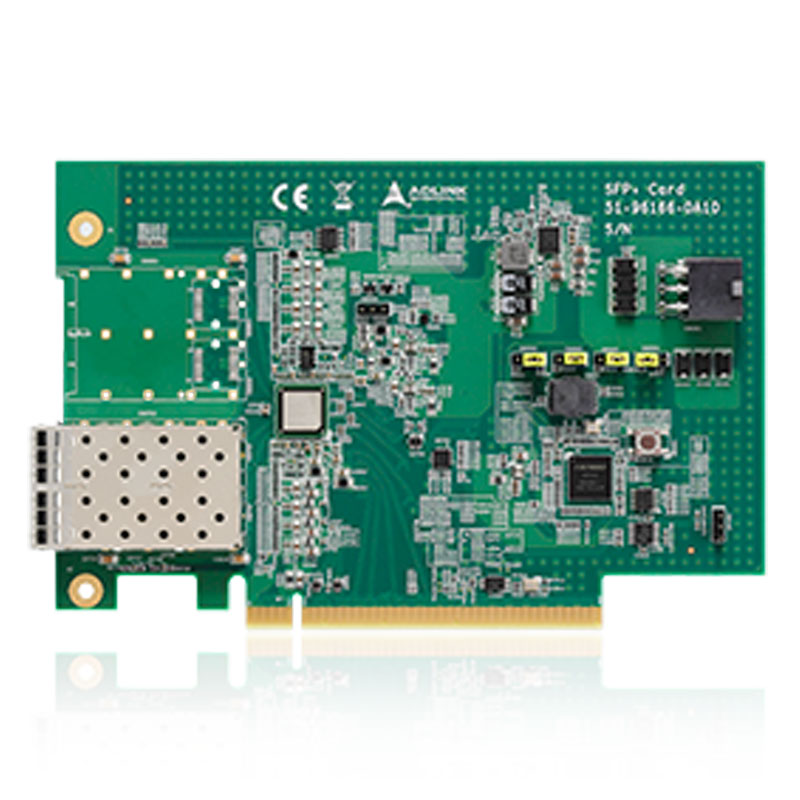

Mode name | 10GbE Optical Fiber Network Adapter Card new | ||
| Interface | |||
| Input | Up to four 10GBASE-KR & related sideband signals from COM Express Type7 module through 164-pin edge connector (PCIe x16 slot PCIEKR on Express-BASE7) | ||
Output | Up to four 10GbE optical fiber signals (10GBASE-SR, 10GBASE-LR) through SFP+ connectors to connect to SFP+ transceivers | ||
| Note: Number of 10GbE ports dependent on the selection of PHY, entry level PHY is selected as default to support two 10GbE ports | |||
| 10GbE PHY | |||
| PHY | Inphi CS4227 Optical Fiber PHY (two 10GbE ports, default BOM configuration) Converts 10GBASE-KR and sideband signals to 10GBASE-SR, 10GBASE-LR. Note: Inphi CS4223 Optical Fiber PHY is available as a build option to support four 10GbE ports (pin-to-pin compatible with CS4227). | ||
| EEPROM | Dedicated EEPROM for PHY firmware Note: Different firmware is required for the CS4227 (two ports) and CS4223 (four ports) | ||
| Dimensions | 168 mm x 107 mm (PCB only, including edge connector) | ||
| Operating Temperatures | |||
| Standard Operating Temperature | 0°C to +60°C | ||
| Specification Compliance | PICMG COM.0: Rev 3.0 Type 7 | ||
