| Standard Items | |||

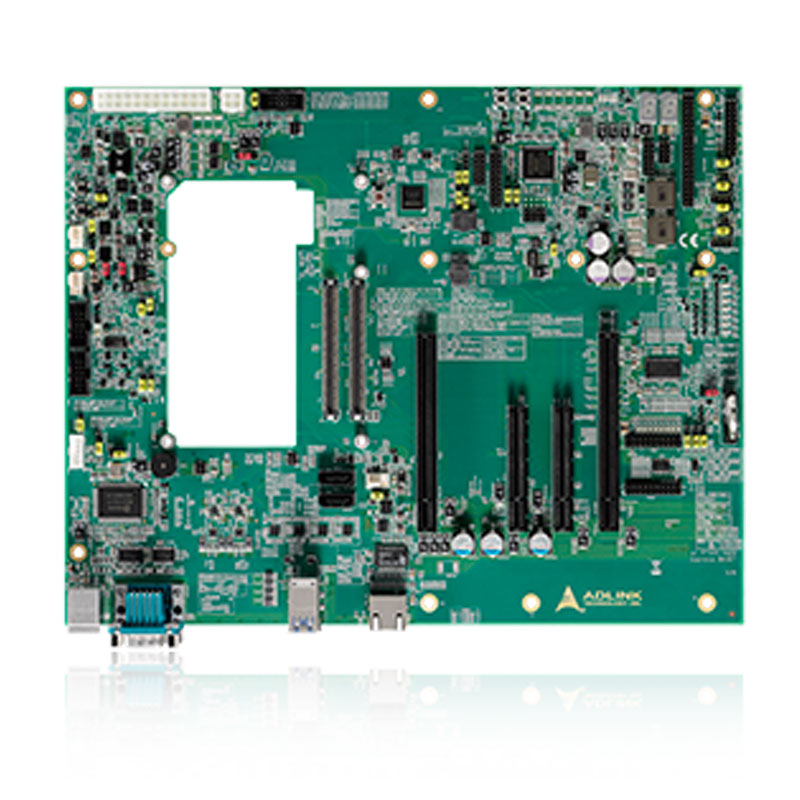

Express-BASE7 | |||
| Core Module Interface | PICMG COM Express Revision 3.0 Supports Type7 module in Basic or Compact form factor | ||
Dimension | 305 mm x 244 mm (ATX) | ||
| Expansion Busses | 1 PCI Express x16 slot 2 PCI Express x8 slots | ||
| POST LEDs | Onboard diagnostics for BIOS POST code data and address on LPC bus | ||
| Secondary BIOS | Onboard socket for secondary SPI flash | ||
| Super I/O | Winbond WF83627DHG on LPC bus | ||
| Digital I/O | I2C to GPIO bridge PCA9535 | ||
| Connectors | Two 220-pin board-to-board connectors (Type 7) | ||
| 10GbE LAN | Up to four 10GBASE-KR and related sideband signals 1 PCI Express x16 slot routes signals from COM Express module to 10GbE card adapter (proprietary pinout) | ||
| GbE LAN | 10/100/1000BASE-T compatible RJ-45 on I/O panel GbE_SDP support | ||
| NC-SI and IPMI BMC | NC-SI interface connect COM Express module and IPMI BMC IPMI BMC (Lite version) on carrier board Note: support by project basi | ||
| SATA | 2x SATA ports | ||
| USB | 4x USB 3.0/2.0 ports | ||
| Serial Port | 2x DB-9 on I/O panel (from Winbond Super I/O) 2x onboard 10-pin header (from COM Express module | ||
| KB/Mouse | 2x 6-pin mini-DIN | ||
| Feature Connectors | SMBus, I2C, module control signals | ||
| Miscellaneous | Reset, Power LED, HDD LED, Buzzer | ||
