规格
| System | |
| Processor | 6th Gen Intel® Core™ i5-6300U, 2-Core, 2.4GHz processor |
| System Memory | 1 x 260-Pin DDR4 2133MHz SO-DIMM up to 16 GB |
| I / O Chip | EC ITE IT8528E |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535min. and 1sec. or 1min./step |
| H/ W Status Monitor | Monitoring CPU & System Temperature and Voltage |
SBC | ARC-SKLU |
| Expansion | 1 x Mini PCIe Support mSATA 1 x 80-pin IET interface |
| Storage | 1 x 2.5" Drive Bay (7mm HDD Restricted) |
| I /O | |
| USB | 4 x USB 3.0 |
| SATA | 1 x SATA II |
| COM Port | 1 x RS-232/422/485 1 x RS-232 |
| Other | 3 x Knockouts for Antenna Mounting |
| Display | |
| Chipset | Intel® Skylake SoC integrated Graphics Supports optional dual display |
| Resolution | HDMI: Max. resolution 4096x2160 @ 24Hz (Optional by IET module) |
| Audio | |
| Chipset | Realtek ALC892 |
| Speaker Output | 2 x 0. 6W |
| Ethernet | |
| Chipset | 1 x Intel® I210AT 1 x Intel® I219LM |
Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
| LAN Port | 2 x RJ-45 |
| Mechanical & Environmental | |
| Power Type | AT/ATX (ATX is default setting) |
| Operating Temp | -10°C ~ 50°C (-14°F ~ 122°F) |
| Storage Temp | -20°C ~ 60°C (-4°F ~ 140°F) |
Operating Humidity | 0% ~ 90% Relative Humidity , Non -Condensing |
Weight | 2.54 Kgs |
| Mounting Kit | Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm |
| IP Rating | Front IP65 Rear IP41 |
Vibration Test | With SSD/mSATA : 3Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis |
Shock Test | Operating with SSD/CFast/mSATA : MIL-STD-810G, Method 516.6, Procedure I, functional shock=20G |
| System Fan | Fanless |

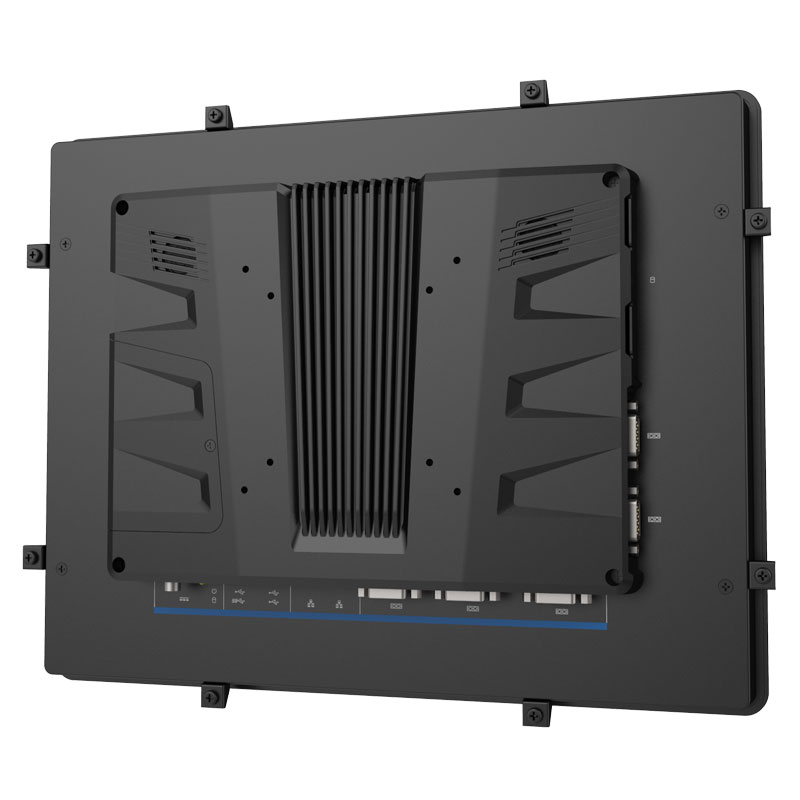

| Construction - Front | Metal with Cover lens |
| Construction - Rear | Black Diet Casting |
| Dimension | 292.86 x 225.4 x 51.5 mm |
| Certifications | |
| Certification Information | CE / FCC Class B |
| Software Support | |
| OS Information | Win 7/ 8.1 / 10 / Linux |
| Power Requirement | |
| Power Connector | Lockable DC Jack |
| Power Requirement | +12V ~ +26V |
| Adapter | Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter |
| Panel | |

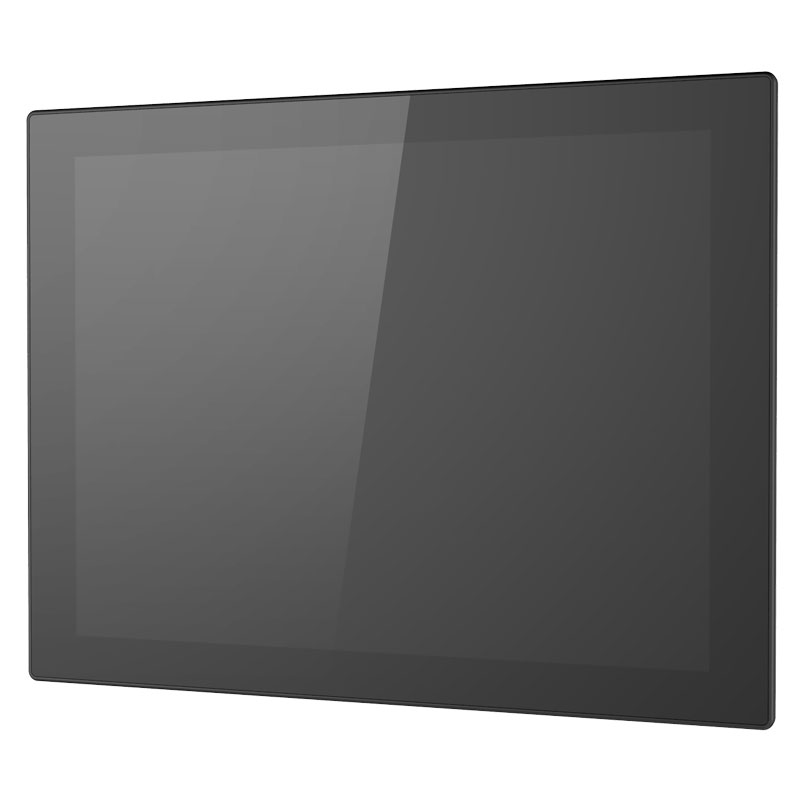

| LCD Size | 12.1", 4:3 |
| Display Type | XGA |
| Resolution | 1024 x 768 |
| Pixel pitch | 0.1905 mm (H) x 0.1905 mm (V) |
| Luminance | 600 cd/m² |
| Contrast ratio | 700 |
| Viewing angle | 70 (U), 70 (D), 80 (L), 80 (R) |
| Response time | 16ms |
| Backlight | LED |
| Touch Type | Projective Capacitive Multi-Touch up to 10 points |
| Touch Light Transmission | 89% |
| Touch Controller | USB touch (EETI) |
