| Specifications | |

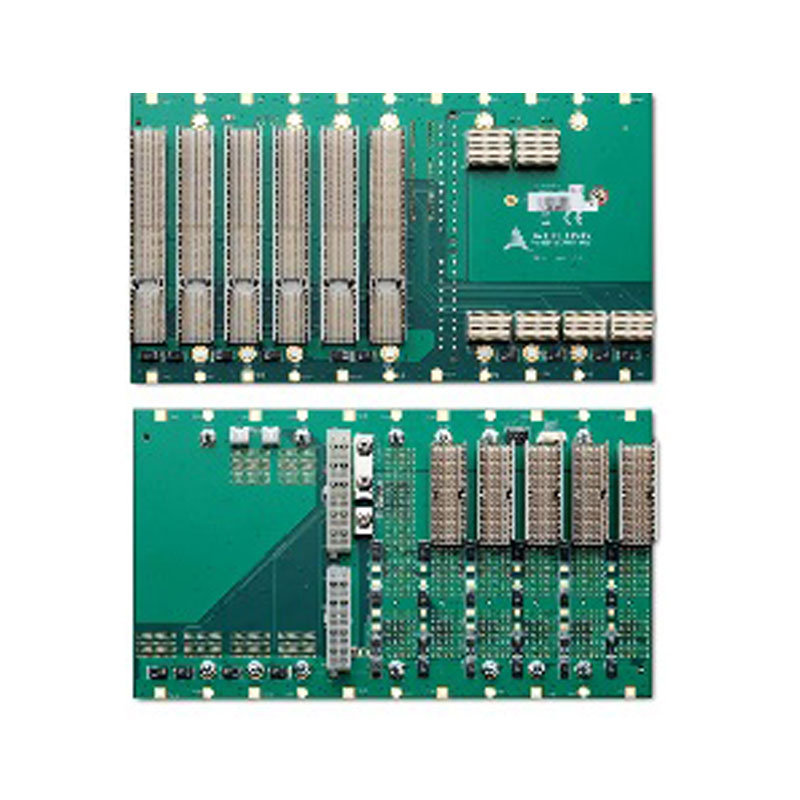

| Model Name | cBP-3210PR |
| PICMG® | 2.0 R3.0, 2.30, S.0 |
| Dimensions | 224.06 x 128.7 (mm, W x H) |
| Segment | one |
| cPCI Bus | 32-bit/33 MHz |
| cPCI PlusIO System Slot | One, Right-hand side |
| cPCI Peripheral Slot Rear I/O | Five |
| CompactPCI® Serial Slot | P2 rear I/O with AB-type shroud |
| V (I/O) | 3.3V or 5V selectable, factory default is 5V |
| Power connectors | ATX connector x2, DC screw terminals |
| Other Connectors | INH#, Reset, PWR_FAL#, Voltage LEDs |
