| Specifications | |||

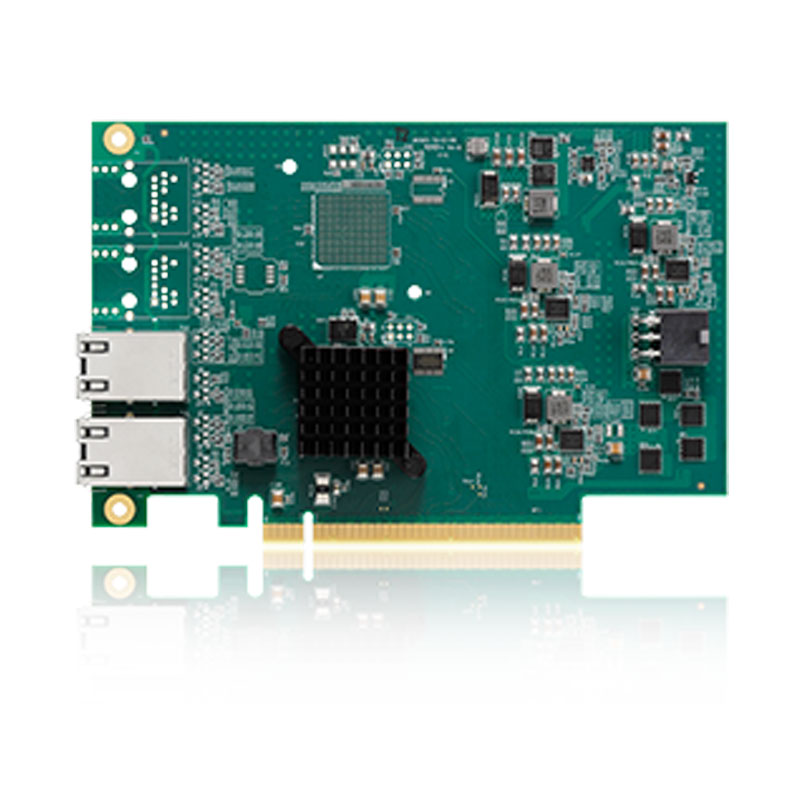

Mode name | 10GBASE-T Network Adapter Card | ||
| Interface | |||
| Input | Up to four 10GBASE-KR & related sideband signals from COM Express Type7 module through 164-pin edge connector (PCIe x16 slot PCIEKR on Express-BASE7) | ||
Output | Up to four 10G copper signals (10GBASE-T) | ||
| 10GbE PHY | |||
| PHY | Intel® Ethernet Connection X557-AT2 (two 10GbE ports, default BOM configuration) Converts 10GBASE-KR and sideband signals to 10GBASE-T signals Note: Four 10GbE ports optionally supported by project basis with 2nd copper PHY on 10GbE BASE-T card. | ||
| EEPROM | Dedicated EEPROM for PHY firmware | ||
| Dimensions | 168 mm x 107 mm (PCB only, including edge connector) | ||
| Operating Temperatures | |||
| Standard Operating Temperature | 0°C to +60°C | ||
| Specification Compliance | PICMG COM.0: Rev 3.0 Type 7 | ||
