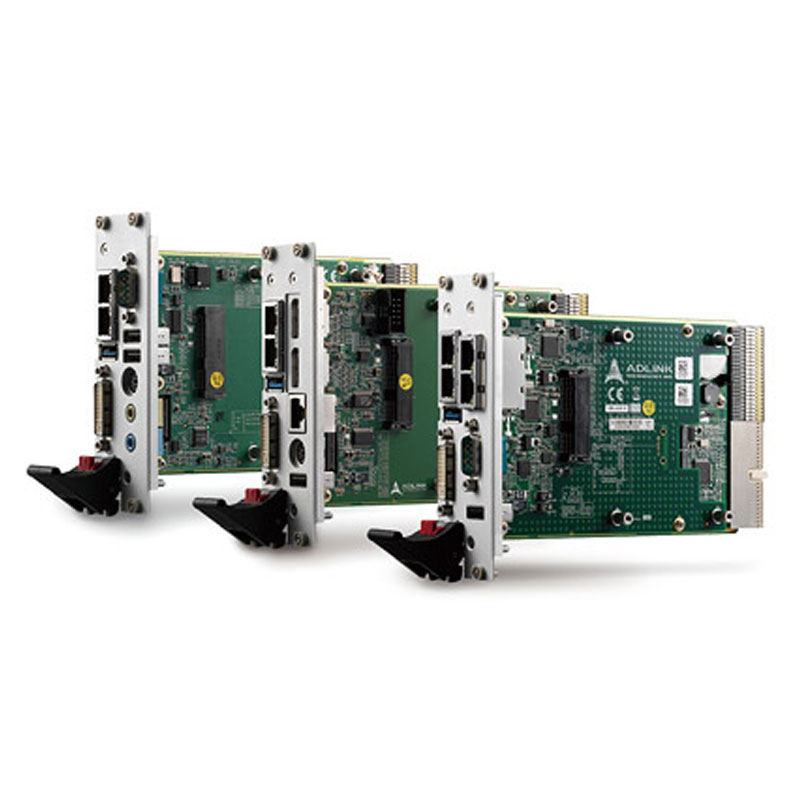

| Processor & System | |
| CPU | Quad-core Intel® Core™ i7-5700EQ Processor 2.6 GHz (Turbo boost up to 3.4GHz), 6M Cache, 47/37W by cTDP (cPCI-3511BL only) Quad-core Intel® Core™ i7-4700EQ Processor 2.4 GHz (Turbo boost up to 3.4GHz), 6M Cache, 47/3 7W by cTDP Dual-core Intel® Core™ i5-4402E Processor 1.6G Hz (Turbo boost up to 2.7GHz), 3M Cache, 25W Supports Intel® Hyper-Threading and Turbo Boos t Technology, VT-x, VT-D, vPro Technology |
| Chipset | Intel® QM87 Chipset |
| Memory | DDR3L-1333 SDRAM ECC soldered, up to 16GB (cPC I-3511BL) DDR3L-1600 SDRAM ECC soldered, up to 8GB (cPCI -3511) |
| BIOS | AMI EFI BIOS, 64Mbit SPI Flash memory |
| CompactPCI Bus | PCI 32bit, 33/66 MHz, 3.3V or 5V universal V (I/O) Supports operation in system slot as master or in peripheral slot as stand-alone blade without c onnectivity to CompactPCI® bus (Satellite mod e) |
| PICMG Standards | PICMG 2.0 CompactPCI R3.0 PICMG 2.1 Hot Swap R2.0 PICMG 2.9 System Management (R1.0) PICMG 2.30 CompactPCI PlusIO |
| Connectivity | |
| PMC/XMC | Optional PCI 64bit/66MHz PMC site or PCIe x1 X MC site |
Ethernet | One Intel® I217LM controller for one Gigabit E thern et front panel port with Intel® AMT 9.0 support Three Intel® I210 controllers for one Gigabit Ethern et front panel port and two rear ports Additional two Intel® 82574L controllers for t wo Gi gabit Ethernet front panel ports on riser card (cPCI -3511 L only) |
| Graphics | Integrated in Intel® processor, 3D engine One DVI-I (digital+analog) port on front panel, analo g switchable to rear, supports up to QXGA 2048x1536 pix els @75Hz, 32-bits Two DisplayPorts on riser card, support up to 2560×14 40 pixels @60Hz, DVI, VGA and HDMI interfaces are avai lable by adapter cables (cPCI-3511(BL)G only) Three independent displays with different /contents |
| USB | Single USB 3.0 port on front panel, and up to three US B ports on front panel on selected SKUs |
| Audio | Line-in and Line-out ports on front panel (cPCI-3511(B L)D only) |
| PS/2 | Keyboard/Mouse on cPCI-3511(BL)D and cPCI-3511(BL)G |
| Serial Port | Up to four serial ports One RS-232/422/485 selectable port on front panel One RS-232/422/485 10-pin header on riser card (cPCI-3511(BL)G only) Two serial ports on rear panel: one with Tx/Rx signal only, one converted from USB signal |
| Storage | |
| Blade | One SATA 6 Gb/s direct connector for 2.5” onboard HD D (8HP version only) CFast socket or mSATA socket Optional onboard 32GB SSD (by replacing CFast adapter board) |
| RTM | Three 7-pin SATA signal connectors Supports SATA RAID 0/1/5/10 |
| Operating System | |
| OS | Microsoft Windows 7/8, 32/64-bit Red Hat Enterprise Linux 6.4 Fedora 18 Wind River VxWorks 6.9, 32/64-bit |
| Miscellaneous | |
| LEDs | Power, WDT, Storage Drive, Overheat, General Purpose |
| Battery | Coin cell lithium battery onboard for RTC CMOS RAM for BIOS configuration |
| Watchdog Timer | System Reset and NMI, with Programmable Interval, 1-65 535 sec or 1-65535 minutes |
| Hardware Monitor | Monitors CPU temperature, system temperature and DC voltages by IPMI |
| TPM | Atmel TPM AT97SC3204 (optional support upon request) |
| Mechanical & Environmental | |
| Form Factor | 3U 4HP/8HP CompactPCI equipped with HM J1 and UHM J2 connector 100mm x 160mm (L x W) |
| Operating Temperature | -20°C to +70°C (Core™ i7-4700EQ and i7-5700EQ 47W) -40°C to +85°C (Core™ i5-4402E, i7-4700EQ and i7-570 0EQ 47W adjusted to 37W by Intel® cTDP) |
| Storage Temperature | -50°C to +100°C |
| RH Humidity | 95% non-condensing |
| Shock | 20g peak-to-peak, 11ms duration, non-operating |
| Vibration | 2g random vibration, 5 to 500Hz in 3 axes, operating |
| Weight | Net weight 713.55g (cPCI-3511(BL)D with heatsink) Net weight 718.20g (cPCI-3511(BL)G with heatsink) |
| Certifications | CE/FCC |
