| Specifications | |||

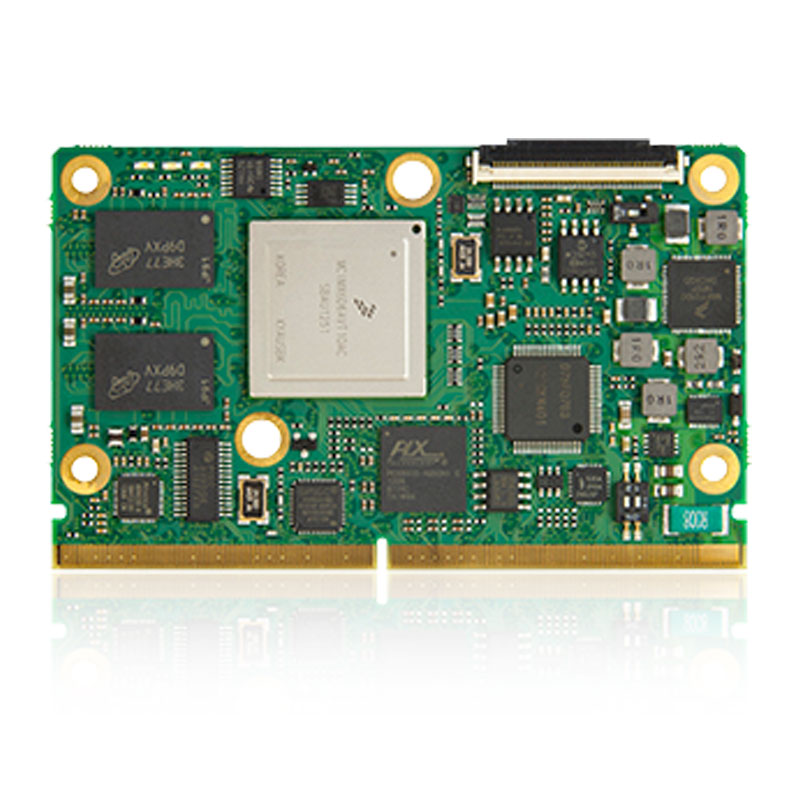

| Model Name | LEC-iMX6 | ||
| Core System | |||
CPU | Freescale i.MX6 Solo, DualLite, Dual or Quad processor i.MX6 Quad, 4 cores, 800 MHz, 1 MB L2 cache, 3 displays, 1x SATA i.MX6 Dual, 2 cores, 800 MHz, 1 MB L2 cache, 3 displays, 1x SATA i.MX6 DualLite, 2 cores, 800 MHz, 512 kB L2 cache, 1 display, no SATA i.MX6 Solo, 1 core, 800 MHz, 512 kB L2 cache, 1 display, no SATA | ||
| Memory | Onboard DDR3L-1066 system memory from 512 MB to 2 GB | ||
Boot Loader | U-Boot boot loader | ||
| L2 Cache | From 512 kB to 1 MB | ||
| SEMA Board Controller | Supports: Voltage/Current monitoring, Power Sequencing, Logistics and Forensic Information, Flat Panel Control, I²C Bus Control, GPIO Control, User Flash, Failsafe BIOS (dual BIOS), Watchdog Timer and Fan Control | ||
| Debug Headers | JTAG debug interface on test-points | ||
| Audio | |||
| Audio Codec | Located on carrier | ||
| Interface | S/PDIF | ||
| Ethernet | |||
Interface | 10/100/1000 GbE | ||
| I/O Interfaces | |||
| PCIe | 1x PCIe x1 | ||
| USB | 2x USB 2.0 host, 1x USB OTG | ||
| SATA | 1x SATA 3Gb/s | ||
| Flash storage | Up to 64 GB eMMC (custom option) | ||
| GPIO | 12x GPIO with interrupt | ||
| SDIO | 1x SDIO | ||
| SPI | 2x SPI | ||
| I²C | 3x I²C | ||
| I²S | 1x I²S | ||
| S/PDIF | 1x S/PDIF | ||
| WDT | 1x WDT | ||
| CAN | 2x CAN | ||
| Management | Battery and System Management | ||
| Camera | |||
| Serial | MIPI CSI camera, 2 lanes | ||
| Parallel | PCAM, 10-bit | ||
| Graphics | |||
| LCD | Parallel LCD 24-bit | ||
| LVDS | LVDS single channel 24-bit | ||
| HDMI | HDMI 1.4a | ||
| Graphics | High-performance video processing unit (VPU), supports SD and HD-level video decoders and SD-level encoders as a multi-standard video codec engine, as well as several important video processing functions, such as rotation and mirroring | ||
| Mechanical and Environmental | |||
| Form Factor | SMARC Specifications v1.0 | ||
| Dimension | SMARC full size module, 82 mm x 80 mm | ||
| Operating Temperature | Standard: 0°C to +60°C Extreme Rugged: -40ºC to +85ºC | ||
| Humidity | 5-90% RH operating, non-condensing 5-95% RH storage (and operating with conformal coating) | ||
| HALT | Thermal Stress, Vibration Stress, Thermal Shock and Combined Test | ||
| Operating Systems | |||
| Standard Support | Windows Embedded Compact 7, Linux | ||
| On Request | Android, VxWorks, QNX | ||
