| Specifications | |||

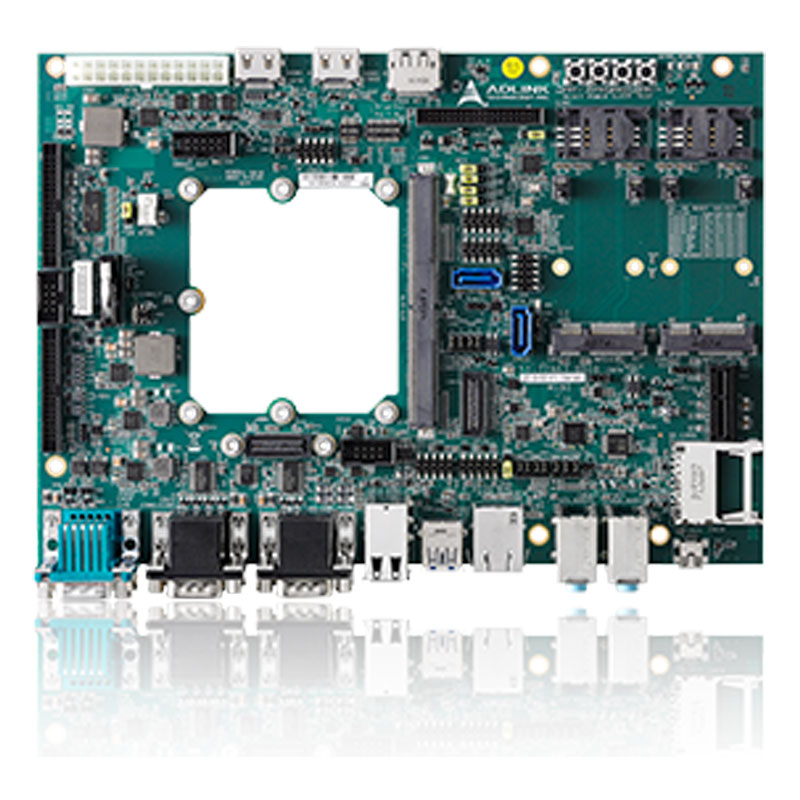

| Model Name | LEC-BASE-MINI | ||
| Interfaces | |||
Display | Standard conguration: Parallel LCD, single channel LVDS (18/24bit), HDMI Custom conguration: Dual channel LVDS, HDMI,additional HDMI/DP (see order information)RGB and LVDS backlight control header | ||
| Camera | Connector for plug-in camera add-on card | ||
SDIO | 4-bit SD card slot | ||
| eMMC | 8-bit eMMC interface header | ||
| SPI | Off module boot use (optional) 2x SPI interface headers | ||
| I²S | 3x I²S interface I2S0 to SGL5000 (default) or AIC3106 (customoption) to audio connector (ARM)I2S1 directly to pin header I2S2 to AlC886 and audio connector (x86) | ||
| I²C | 4x I²C Power Management LCD Camera GP | ||
| Asynchronous Serial | 4x asynchronous serial ports (UART) | ||
Port | Two with 2 wire handshake (RXD, TXD, RTS#, CTS#) Two with data only (RXD, TXD) Logic level interface | ||
| CAN Bus | 2x CAN bus (D-SUB9) Logic level signals from module based CAN bus protocol controllers RXD, TXD only | ||
| USB | 4x USB2.0 host 1x USB3.0 host (from AFB, module dependent) 1x mini USB2.0 OTG/client 2x USB2.0 via miniPCIe | ||
| PCI Express | One PCIe x1 link connector Two mini PCIe x1 slots PCIe Gen1, Gen 2 or Gen 3 (module dependent) PCIe support signals PCIe wake signal (depending on module) 2x SIM card slots | ||
| SATA | 2x SATA Gen1, Gen2 or Gen3 (module dependent) | ||
| Ethernet | 1x RJ-45 10/100/1000 Ethernet | ||
| S/PDIF | S/PDIF header for audio | ||
| Boot Select Jumpers | Module: SPI/eMMC/NOR/NAND Carrier: SPI/eMMC/SD Card/SATA Usage is module dependent | ||
| GPIO | 12-pin header (including fan control and HDA reset) | ||
| Alternate Function | Dedicated AFB connector | ||
| Blocks | Pinout is module dependent(see SMARC specication) | ||
| Mechanical and Environmental | |||
| Dimension | 237 mm x 170 mm (L x W) | ||
| Board Connector | MXM 314 pins | ||
| Ordering Information | |||
| LEC-BASE MINI Standard | 2nd Generation SMARC evaluation carrier with triple display (RGB LCD, SC LVDS and HDMI | ||
| LEC-BASE MINI Custom | 2nd Generation SMARC evaluation carrier with triple display (DC LVDS, HDMI and HDMI/DP) | ||
